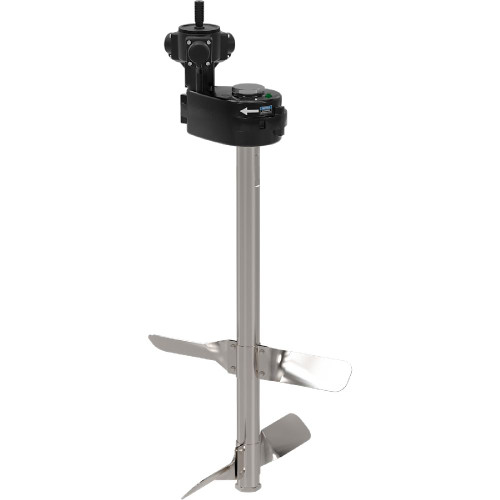

GRACO 26B631 - Back-Geared Radial Piston Agitator, heavy duty, w/ siphon kit

Heavy duty back-geared radial piston agitator with siphon kit for industrial mixing applications requiring clockwise rotation. Features robust radial piston design for reliable performance in demanding environments.

Speed up savings when agitating high viscosity material. The radial piston air motor that powers this back-geared agitator uses up to 85 percent less compressed air than a comparable rotary vane motor.

Additional Specifications

• Rotation: Clockwise
• Max Material Viscosity: 3,000 cP
• Agitator Type: Back-Geared Radial Piston
• Duty Rating: Heavy duty
• Gear Reduction: 6:1
• Agitator Rotation: Clockwise

Specifications

Features

• Back-geared radial piston design for high torque applications
• Heavy duty construction for demanding industrial use
• Includes siphon kit for enhanced functionality
• Handles high viscosity materials up to 3,000 cP
• Clockwise rotation operation

Applications

• High viscosity material mixing
• Industrial agitation applications
• Paint and coating mixing
• Chemical processing
• Applications requiring siphon capability

Compatible Equipment

• Model 25C530

Related Parts

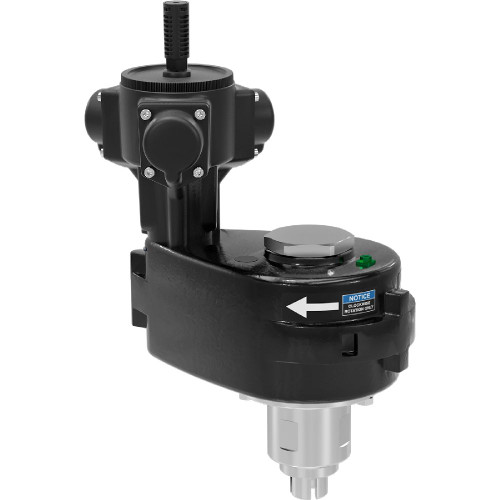

• 26B618 - Back-Geared Radial Piston Agitator, In-Drum, heavy duty, 2 inch Bung Mount
• 26B619 - Back-Geared Radial Piston Agitator, In-Drum, heavy duty, 1.5 inch Bung Mount
• 26B630 - Back-Geared Radial Piston Agitator, heavy duty
• 26B632 - Back-Geared Radial Piston Agitator, heavy duty, with elevator and drum cover
• 26B633 - Back-Geared Radial Piston Agitator, heavy duty, with elevator, drum cover and siphon kit
• 26B618
• 26B619
• 26B630
• 26B632
• 26B633

Manual reference 3A4792. Part of GRACO's back-geared radial piston agitator family designed for heavy duty applications. Heavy duty model with siphon kit included. Has ATEX approval marking: II 1/2 G Ex h IIB T4 Ga/Gb CML 24ATEX6023X +1°C ≤ Ta ≤ +40°C Part of Back Geared Agitator Models series. Specifications referenced on page 34. Used with angled adapter 16H294 for off-center bung applications. Compatible with drum cover assembly systems with or without elevator.

Reference Manuals

• 345130 (Page 3)
• 3A4792 (Page 2)
