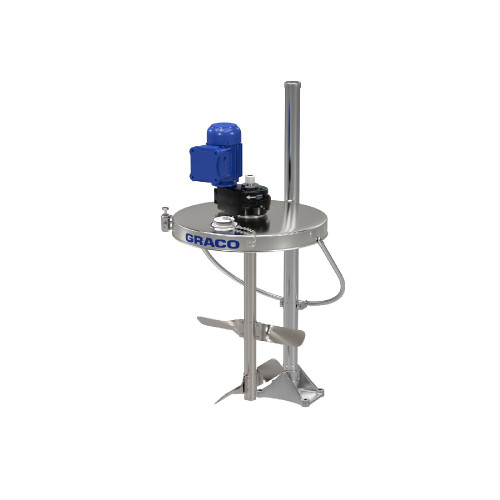

GRACO 26B633 - Back-Geared Radial Piston Agitator, heavy duty, w/ elevator, drum cover & siphon kit

Heavy-duty back-geared radial piston agitator designed for demanding mixing applications, featuring integrated elevator, drum cover and siphon kit for complete fluid handling solutions in industrial environments.

Speed up savings when agitating high viscosity material. The radial piston air motor that powers this back-geared agitator uses up to 85 percent less compressed air than a comparable rotary vane motor.

Additional Specifications

• Agitator Rotation: Clockwise
• Max Material Viscosity: 3,000 cP
• Duty Rating: Heavy duty
• Gear Reduction: 6:1
• Recommended Agitator Rotation: Clockwise

Specifications

Features

• Back-geared radial piston design for high torque output
• Heavy duty construction for demanding applications
• Integrated elevator for drum positioning
• Includes drum cover for contamination protection
• Siphon kit included for complete fluid transfer capability
• Handles high viscosity materials up to 3,000 cP

Applications

• High viscosity material mixing
• Industrial fluid handling
• Drum-based mixing operations
• Applications requiring contamination protection

Compatible Equipment

• Model 25C530

Related Parts

• 26B618 - Back-Geared Radial Piston Agitator, In-Drum, heavy duty, 2 inch Bung Mount
• 26B619 - Back-Geared Radial Piston Agitator, In-Drum, heavy duty, 1.5 inch Bung Mount
• 26B630 - Back-Geared Radial Piston Agitator, heavy duty
• 26B631 - Back-Geared Radial Piston Agitator, heavy duty, with siphon kit
• 26B632 - Back-Geared Radial Piston Agitator, heavy duty, with elevator and drum cover
• 26B618
• 26B619
• 26B630
• 26B631
• 26B632

Kit Contents

• Elevator system
• Drum cover
• Siphon kit

This is the most complete configuration in the back-geared radial piston agitator family, combining all accessories (elevator, drum cover, and siphon kit) for comprehensive fluid handling applications. Heavy duty model with elevator, drum cover, and siphon kit included. Part of the 6:1 gear reduction agitator family. Has CE approval marking. This is part of the Back Geared Agitator Models series. Detailed specifications are referenced to be found on page 38 of the manual. Compatible with angled adapter 16H294 for off-center bung applications.

Reference Manuals

• 345130 (Page 3)
• 3A4792 (Page 2)
• 3A4935 (Page 1)
