GRACO 26B701 - SS Ball Fluid Cartridge Kit for 26B504 Spray Gun, 1500 PSI

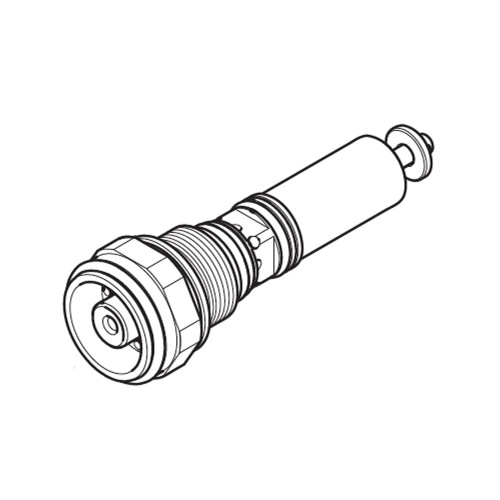

26B701 Fluid Cartridge Kit with stainless steel ball, plastic seat, and low viscosity spring

Specifications

• Max Working Pressure: 1500 PSI rated models only
• Material: plastic seat and stainless steel ball
• Spring Type: low viscosity spring

Compatible Equipment

• 1500 PSI rated models only
• Model 26B504
• 26B504 - PerformAA 1500 Air Assist Gun w/ Gen Finish air cap, plastic seat & St Steel ball, 1500 PSI

Related Parts

• 26B700 - Kit, Fluid Cartridge, Performaa
• 26B702 - Kit, Fluid Cartridge, Wl, Lv, Carbide Ball And Seat
• 26B706 - Kit, Fluid O-Ring, Performaa

Kit Contents

• plastic seat
• stainless steel ball
• 26B708 - KIT DIFFUSER, plastic seat; kit includes 1 o-ring (6c)
• 26B705 - KIT, NEEDLE ASSEMBLY, stainless steel
• 111316 - PACKING, O-RING (Internal)
• 111116 - PACKING, O-RING
• 116768 - PACKING, O-RING
• -- - NUT, SEAT, purchase kit 249424
• -- - SEAT, PLASTIC, purchase kit 249424

Used as solution for worn seat causing fluid leakage from front of gun. Mentioned in troubleshooting context for carbide seat seal issues. This is part of a fluid cartridge family where 26B700 is for Models 26B500 and 26B501, 26B701 is for Model 26B504, and 26B702 is for Models 26B502, 26B503, 26B505 Use in model 26B504. Identified with two markings on 6b. Not compatible with Perform AA 50 or RAC models. Some components included in Fluid Seal Replacement Kit (26B706) and Plastic Seat Repair Kit (249424).

Reference Manuals

• 3A8099 (Page 29) PerformAA™ Spray Guns
