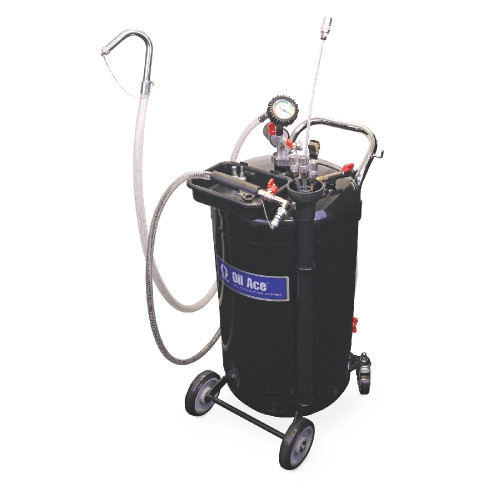

GRACO 26C061 - Waste Oil Evacuation System w/ 24 gal Steel Tank, Suction Probes & Adapters, 7 PSI
Waste Oil Evacuation System - one of the models covered in this valve identification manual section
For shops requiring flexibility when it comes to removing used fluids, use Graco's vacuum-assisted evacuation system.
Vacuum Gauge - Ensure peak performance with easy-to-read vacuum gauge.
Easy to Drain - Pressurize using shop air for easy oil evacuation.
Vacuum Probes - Variety of flexible suction attachments and adapters included.
Large 24 Gallon (90 Liter) Capacity Receiver - Perfect for small to large shops without an evacuation system.
Additional Specifications
- Max Working Pressure: Maximum Draining Pressure: 7 PSI (50 kPa, 0.5 bar); Maximum Air Inlet Pressure to Vacuum: 110 PSI (760 kPa, 7.6 bar)
- Capacity: 24-Gallon (90 Liter)
- Purpose: Pressurized oil drain for collection of used lubricants
| Compatible Fluid | Used Oil;ATF |
| Maximum Operating Temperature (°F) | 194 |
| Minimum Operating Temperature (°F) | 30 |
| Overall Length (in) | 24 |
| Overall Width (in) | 16 |
| Tank Capacity (gal) | 24 |
| Type | Fluid Reclamation Package |
| Weight (lb) | 50.7 |
| Wetted Parts | Steel, Copper, PVC Plastic, Rubber, Aluminum |
Compatible Equipment
- Oil Ace system
- Models 26C061 and 26C063
- Uses vacuum gauge assembly (14) installed into tank adapter (13a)
- Compatible with large wheels (2a), rear caster threaded post (2b), handle (10a), air inlet fitting (3)
Related Parts
- 119577 - Oil Receiver
- 26C062 - Waste Oil Evacuator with Chamber
- 26C063 - Waste Oil Evacuator with Bowl
- 26C064 - Waste Oil Evacuator with Chamber and Bowl
- 26C063
- 26C062
- 26C064
For professional use only. Part of the Oil Ace product family for waste oil collection. This page shows valve identification diagram (Fig. 1) for models 26C061 and 26C063. All valves are shown in closed position. Valves are labeled a, b, c, d, e, f, and 14a in the diagram. Model 26C061 valve locations referenced in Fig. 1, page 3. Uses vacuum gauge assembly (14) installation into tank adapter (13a) rather than chamber cover installation used by models 26C062 and 26C064. Setup instructions include wheel assembly, caster installation, handle mounting, air inlet fitting installation, and vacuum gauge assembly installation.
