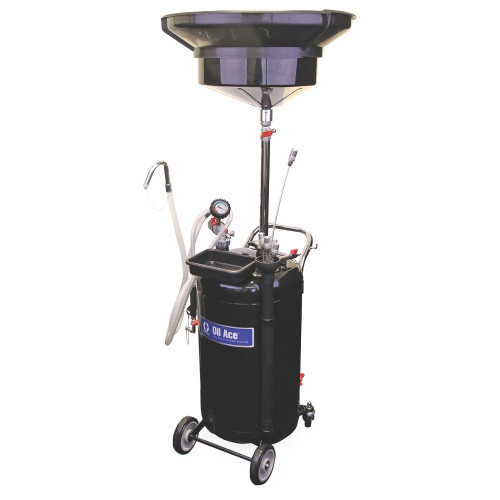

GRACO 26C063 - Waste Oil Evacuation System w/ 24 gal Steel Tank, Suction Probes, Sight Glass, Oil Drain Funnel & Adapters, 7 PSI

Model 26C063 - appears to be part of waste oil evacuation system series

For shops requiring flexibility when it comes to removing used fluids, use Graco’s multi-purpose used oil evacuation system.

• Large Offset Collection Pan - Wide offset collection bowl prevents splashing.

• Vacuum Gauge - Ensure peak performance with easy-to-read vacuum gauge.

• Easy to Drain- Pressurize using shop air for easy oil evacuation.

• Vacuum Probes- Variety of flexible suction attachments and adapters included.

• Large 24 Gallon (90 Liter) Capacity Receiver- Perfect for small to large shops without an evacuation system.

Additional Specifications

• Max Working Pressure: Maximum Draining Pressure: 7 PSI (50 kPa, 0.5 bar); Maximum Air Inlet Pressure to Vacuum: 110 PSI (760 kPa, 7.6 bar)
• Capacity: 24-Gallon (90 Liter)
• Application: Pressurized oil drain for collection of used lubricants

Compatible Equipment

• Oil Ace system
• Models 26C061, 26C062, 26C063, and 26C064 series

Related Parts

• 119577 - Series A Oil Receiver
• 26C061 - Waste Oil Evacuator
• 26C062 - Waste Oil Evacuator with Chamber
• 26C064 - Waste Oil Evacuator with Chamber and Bowl

For professional use only. Part of the Oil Ace product line. Maximum draining and air inlet pressure specifications apply to all models in this series. Model 26C063 uses tank adapter (13a) configuration similar to 26C061. For valve locations see Fig. 1, page 3. Vacuum gauge assembly (14) installs into tank adapter (13a). Setup instructions are shared across models 26C061, 26C062, 26C063, and 26C064. Steps 9-12 in the setup instructions are specifically noted as being 'for Model 26C063 and 26C064 ONLY', indicating these models share certain assembly procedures and likely similar drain tube configurations with threaded openings and hand wheels

Reference Manuals

• 310864 (Page 1) 24 Gallon (90 Liter) Oil Ace
