GRACO 26D002 - T4 Package: Includes 2 Pumps (Carbon Steel) & 2 Supply Hoses, 315 PSI

T4 Transfer Pump Package designed for efficient material transfer in spray systems. Combines GRACO's proven Merkur air-motor technology with carbon steel pump lower in a complete 2-pump solution with fluid supply kit. Features ProConnect technology for quick pump tower disconnection, 3:1 air to fluid pressure ratio for efficiency, and pneumatic air pilot valve switching for reduced maintenance.

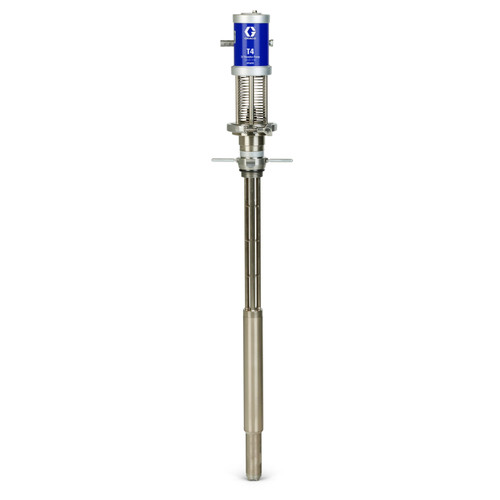

Transfer Pumps are required to move A and B materials to the Reactor® Spray Systems. The T4 Transfer Pump combines Graco’s proven Merkur® air-motor and carbon steel lower. The T4 is a 3:1 ratio pump with ProConnect technology – allowing you to quickly connect and disconnect the air motor from the pump lower.

Additional Specifications

• Ratio: 3:1
• Flow Rate: 17 lpm (4.5 gpm)
• Max Working Pressure: 21.7 bar (315 PSI) fluid pressure, 6.8 bar (100 PSI) air pressure
• Weight: 11 kg
• Height: 126 cm (49.8 in)
• Max Ambient Temp: 49°C (120°F)
• Max Fluid Temp: 88°C (190°F)
• Manual Number: 3A8502
• Motor Type: Merkur air-motor

Specifications

Features

• 3:1 pump ratio for efficient fluid transfer
• Carbon steel construction for chemical resistance
• Dual pump configuration for increased capacity
• Complete package with supply hoses included
• High flow rate of 17 lpm (4.5 gpm)
• Handles fluids up to 88°C (190°F)

Applications

• Industrial fluid transfer
• Chemical processing applications
• Paint and coating transfer
• Oil and lubricant dispensing
• Reactor spray systems material transfer
• A and B material transfer applications

Compatible Equipment

• T4 Transfer Pump Systems
• Reactor Spray Systems
• Reactor 3 spray foam systems

Related Parts

• 273295 - Pump Lower, Kit, (Carbon Steel)
• 26A304
• 26D001 - T4 Pump
• 26D003 - T4 Pump Package with air hose kit and desiccant dryer kit
• 273295 - Kit, Pump Lower
• 26D003 - T4 PKG: two pumps, fluid and air hoses
• 273295 - T4/E1: Pump Lower, Carbon Steel, (Bung adapter not included)

Kit Contents

• 260001 - T4 Pump (Carbon Steel) - Quantity: 2
• Supply hoses - Quantity: 2
• 2 T4 pumps
• Fluid supply kit
• Two T4 transfer pumps
• Fluid hoses

Part of the T4 carbon steel pump family. Technical specifications based on individual T4 pump (260001) performance shown in specifications table. Package includes 2 pumps and fluid supply kit. Part of T4 transfer pump family that utilizes same proven GRACO Merkur air motor technology as T3 pump but with ProConnect technology. Part of the T4 transfer pump family for Reactor 3 systems. Can be upgraded with Core E1 transfer pumps for a complete drum-to-gun system.

Reference Manuals

• 300767 (Page 3)
• 349104 (Page 27)
• 350440 (Page 2)
• 388294 (Page 10)
• 3J0315EN (Page 12)
