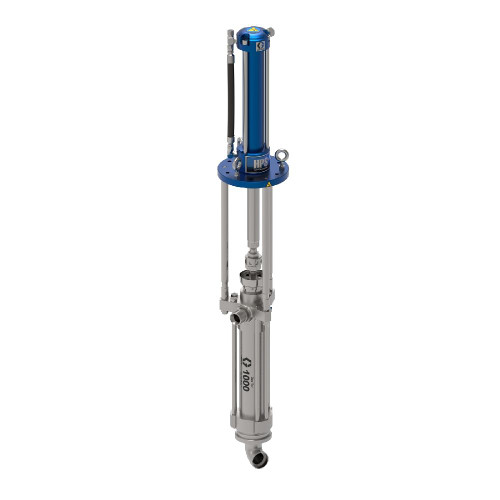

GRACO 26D813 - RoadLazer HP S 135 w/ Dura-Flo XL 1000cc MaxLife

The RoadLazer HPS are industry-leading pumping systems that provide true market-leading performance for the most demanding long-line striping applications. With an incredibly long 11.25 inch stroke, Xtreme Seal™ packings and Severe Duty pump coating, you are ensured longevity as well; or choose the MaxLife pump coating for even longer life.

Additional Specifications

• Flow Rate: 13.5 gpm option available
• Max Working Pressure: high-pressure rated
• Material: Hard Chrome over Stainless Steel with MaxLife coating
• Stroke Length: 11.25 inch
• Pump Volume: 1000cc
• Coating: MaxLife - 3X Life over Severe Duty
• Coating Type: MaxLife
• Hydraulic Motor: Heavy-Duty 900
• Paint Displacement Pump Lower: Dura-Flo XL 1000cc MaxLife

Specifications

Features

• Incredibly long 11.25 inch stroke for more paint per stroke
• MaxLife coating provides 3X life over Severe Duty coating
• Xtreme Seal packing for extended durability
• No-Stall Hydraulic System with precision machined parts
• 100% O-Ring Sealed Design eliminates hydraulic fluid leaks
• Adjustable Wet Cup for extended packing life

Applications

• Long-line striping applications
• Demanding striping projects requiring consistent paint delivery
• Professional road marking and pavement striping
• High-production striping operations
• High-pressure paint pumping
• Demanding striping jobs requiring consistent paint delivery

Compatible Equipment

• Long-line truck applications
• RoadLazer HPS hydraulic pumping systems
• Long-line striping equipment
• Heavy-Duty 900 hydraulic motor
• Dura-Flo XL 1000cc MaxLife pump lower

Related Parts

• 269089 - RoadLazer HPS 135 w/ Dura-Flo XL 1000cc Severe Duty
• 269809 - RoadLazer HPS 180 w/ Dura-Flo XL 1400cc Severe Duty
• 269814 - RoadLazer HPS 180 w/ Dura-Flo XL 1400cc MaxLife
• 25U989 - RoadLazer HP S 135 w/ Dura-Flo XL 1000cc Severe-Duty
• 26D809 - RoadLazer HP S 180 w/ Dura-Flo XL 1400cc Severe-Duty
• 26D814 - RoadLazer HP S 180 w/ Dura-Flo XL 1400cc MaxLife

This is a complete system combining the RoadLazer HPS hydraulic pumping system with the Dura-Flo XL 1000cc MaxLife pump. Designed for contractors who need reliable, high-performance equipment for long-line striping with crisp, sharp lines and minimal downtime. Part of the RoadLazer HPS family designed for professional contractors doing long-line striping work. MaxLife coating provides 3X longer life than standard Severe Duty coating. This is part of the HPS (Hydraulic Pump System) series with MaxLife designation, using Heavy-Duty 900 hydraulic motor and Dura-Flo XL 1000cc MaxLife paint displacement pump lower

Reference Manuals

• 3J0419EN (Page 3) EN-A
• 3J0419EN - A (Page 3)
• 3A9247 (Page 2) RoadLazer HPS 135 and HPS 180 Hydraulic Pumping Systems, Operation and Parts
