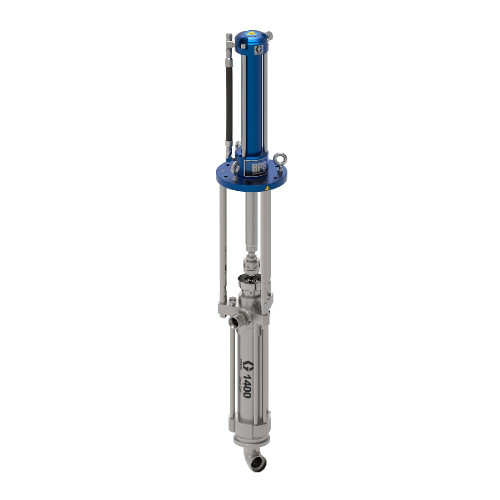

GRACO 26D814 - RoadLazer HP S 180 w/ Dura-Flo XL 1400cc MaxLife

Professional hydraulic pumping system combining the RoadLazer HPS 180 with Dura-Flo XL 1400cc MaxLife pump for demanding long-line striping applications. Features industry-leading performance with incredibly long 11.25 inch stroke, Xtreme Seal packings, and Severe Duty pump coating for extended longevity and maximum paint per stroke.

The RoadLazer HPS are industry-leading pumping systems that provide true market-leading performance for the most demanding long-line striping applications. With an incredibly long 11.25 inch stroke, Xtreme Seal™ packings and Severe Duty pump coating, you are ensured longevity as well; or choose the MaxLife pump coating for even longer life.

Additional Specifications

• Flow Rate: 180 gpm option available
• Max Working Pressure: high-pressure rated
• Material: Hard Chrome over Stainless Steel with MaxLife coating
• Stroke Length: 11.25 inches
• Pump Capacity: 1400cc
• Coating Type: MaxLife coating for 3X life over Severe Duty
• Pump Volume: 1400cc
• Coating: MaxLife - 3X Life over Severe Duty
• Hydraulic Motor: Heavy-Duty 900
• Paint Displacement Pump Lower: Dura-Flo XL 1400cc MaxLife

Specifications

Features

• Incredibly long 11.25 inch stroke for more paint per stroke
• MaxLife coating achieves 3X life over Severe Duty coating
• Xtreme Seal high-pressure packings with U-Cup design
• 100% O-Ring sealed hydraulic system
• No-stall hydraulic system with precision machined parts
• Adjustable wet cup for extended packing life

Applications

• Long-line striping applications
• High-pressure paint pumping
• Professional road marking
• Demanding striping jobs requiring consistent paint delivery
• Demanding striping projects requiring high production rates
• Applications requiring crisp, sharp lines

Compatible Equipment

• RoadLazer HPS hydraulic pumping systems
• Long-line striping equipment
• Professional paint spraying systems
• Long-line truck applications
• Heavy-Duty 900 hydraulic motor
• Dura-Flo XL 1400cc MaxLife pump lower

Related Parts

• 26D809 - RoadLazer HPS 135 w/ Dura-Flo XL 1000cc Severe Duty

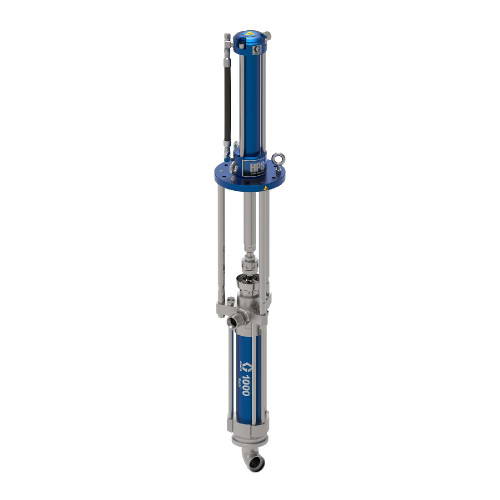

• 26D813 - RoadLazer HPS 135 w/ Dura-Flo XL 1000cc MaxLife
• 26D820 - RoadLazer HPS 180 w/ Dura-Flo XL 1400cc Severe Duty
• 25U989 - RoadLazer HP S 135 w/ Dura-Flo XL 1000cc Severe-Duty

Part of the RoadLazer HPS hydraulic pumping system family, designed for contractors who need reliable, high-performance paint pumping with extended service life This is a complete system combining RoadLazer HPS hydraulic pumping system with Dura-Flo XL 1400cc MaxLife pump. Available in 13.5 gpm and 18.0 gpm options. Features adjustable wet cup for extended packing life. Part of HPS (Hydraulic Pump System) MaxLife series with 1400cc displacement pump lower

Reference Manuals

• 3J0419EN (Page 3) EN-A
• 3J0419EN - A (Page 3)
• 3A9247 (Page 2) RoadLazer HPS 135 and HPS 180 Hydraulic Pumping Systems, Operation and Parts
