Item #: 273167
Price: with strikethrough $1,235.00
Retail Price:
Sale Price: Price $881.25
Call 888-654-8898
Need this Product for a Specific Application?

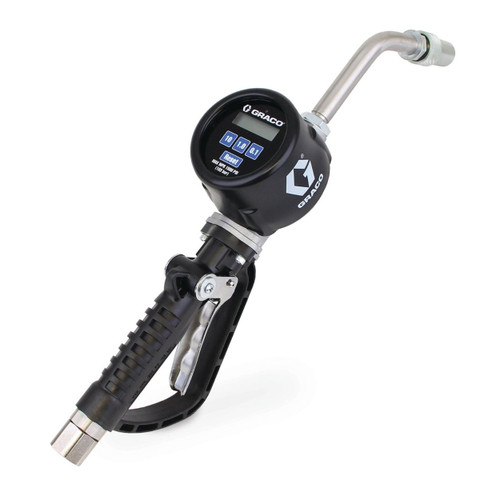

Use our handy finder to find the exact model for your needs.Use Graco’s PM Series electronic preset meters to dispense fluids quickly, reliably and accurately to vehicles, trucks, yellow iron machines and more in the most challenging, extreme environments. Designed with high-quality robust materials to protect key components, these powerful meters can take a beating without fail for optimal productivity.
Features:
Specifications:
| Calibration Type | Factory Calibrated |
| Compatible Material | Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze |
| Dispense Type | Preset |
| Display Type | Electronic |
| Extension Type | Rigid |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| IP Rating | 69K |
| Includes | Nozzle, Extension |
| Inlet Size (in) | 3/4 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 20 |
| Maximum Operating Temperature (°F) | 125 |
| Maximum Recorded Dispense | 19999 |
| Maximum Storage Temperature (°F) | 185 |
| Maximum Totalizer | 19999 |
| Maximum Working Pressure (MPa) | 10 |
| Maximum Working Pressure (psi) | 1500 |
| Meter Accuracy | ±0.5 |
| Meter Accuracy (%) | ±0.5 |
| Meter Pressure Loss (psi) | 150 PSI at 12 GPM |
| Meter Technology | Oval Gear |
| Metering Gun Weight (lb) | 5.2 |
| Minimum Flow Rate (GPM) | 0.25 |
| Minimum Operating Temperature (°F) | -20 |
| Nozzle Type | Manual |
| Outlet Size (in) | 3/4 |
| Outlet Thread Type | ORB |
| Overall Height (in) | 7.2 |
| Overall Length (in) | 21.4 |
| Overall Width (in) | 4.1 |
| Recommended Environment | Indoor/Outdoor |
| Series | 20 |
| Trigger Lock | Locking |
| Trigger Protection Type | Lock Off Button |
| Type | Electronic Metered Dispense Valve |
| Unit of Measure | Quart, Pint, Liter, Gallon |
| Valve Type | Metered |
| Warranty | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts |
| Wetted Material | Aluminum, Stainless Steel, Carbon Steel, Acetal, Nitrile Rubber, Geolast® |
Use Graco’s PM Series electronic preset meters to dispense fluids quickly, reliably and accurately to vehicles, trucks, yellow iron machines and more in the most challenging, extreme environments. Designed with high-quality robust materials to protect key components, these powerful meters can take a beating without fail for optimal productivity.
Features:
Specifications:
| Calibration Type | Factory Calibrated |
| Compatible Material | Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze |
| Dispense Type | Preset |
| Display Type | Electronic |
| Extension Type | Rigid |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| IP Rating | 69K |
| Includes | Nozzle, Extension |
| Inlet Size (in) | 3/4 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 20 |
| Maximum Operating Temperature (°F) | 125 |
| Maximum Recorded Dispense | 19999 |
| Maximum Storage Temperature (°F) | 185 |
| Maximum Totalizer | 19999 |
| Maximum Working Pressure (MPa) | 10 |
| Maximum Working Pressure (psi) | 1500 |
| Meter Accuracy | ±0.5 |
| Meter Accuracy (%) | ±0.5 |
| Meter Pressure Loss (psi) | 150 PSI at 12 GPM |
| Meter Technology | Oval Gear |
| Metering Gun Weight (lb) | 5.2 |
| Minimum Flow Rate (GPM) | 0.25 |
| Minimum Operating Temperature (°F) | -20 |
| Nozzle Type | Manual |
| Outlet Size (in) | 3/4 |
| Outlet Thread Type | ORB |
| Overall Height (in) | 7.2 |
| Overall Length (in) | 21.4 |
| Overall Width (in) | 4.1 |
| Recommended Environment | Indoor/Outdoor |
| Series | 20 |
| Trigger Lock | Locking |
| Trigger Protection Type | Lock Off Button |
| Type | Electronic Metered Dispense Valve |
| Unit of Measure | Quart, Pint, Liter, Gallon |
| Valve Type | Metered |
| Warranty | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts |
| Wetted Material | Aluminum, Stainless Steel, Carbon Steel, Acetal, Nitrile Rubber, Geolast® |
