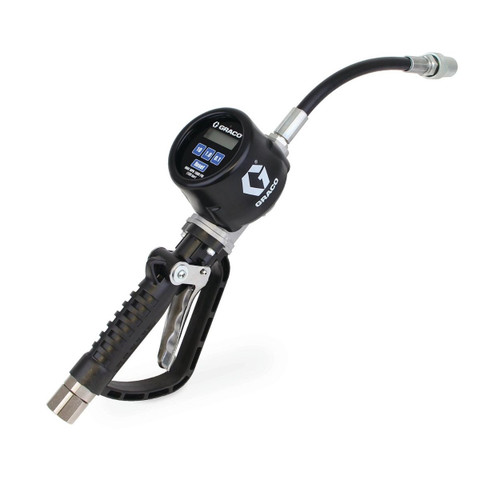

GRACO 273168 - PM 20 Electronic Preset Oil Meter - Flexible Extension - 3/4" Inlet - NPT

GRACO 273168 - PM 20 Electronic Preset Oil Meter - Flexible Extension - 3/4" Inlet - NPT

Item #: 273168

MSRP: Price: $1,235.00

Price: with strikethrough $1,235.00

Retail Price:

Sale Price: Price $881.25

(You save $353.75 )

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Item Description

Use Graco’s PM Series electronic preset meters to dispense fluids quickly, reliably and accurately to vehicles, trucks, yellow iron machines and more in the most challenging, extreme environments. Designed with high-quality robust materials to protect key components, these powerful meters can take a beating without fail for optimal productivity.

Features:
IP69K rated and encased in metal, so they’re heavier and more robust than flimsier competitive meters
Reliable internal braking system eliminates need for external shock pack
Specially crafted leak-resistant valves and seals are tested — and retested — to ensure optimal quality.
Dispense exacting amounts of petroleum, synthetic oils, antifreeze and other fluids, so there’s less waste — and more profitability.
The high-quality construction protects key components from contaminants, drops, bumps and beatings that could compromise performance.
Long Battery Life - Features four easily-replaceable AA batteries.

High-Flow Rates

Specifications:

Calibration Type	Factory Calibrated
Compatible Material	Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze
Dispense Type	Preset
Display Type	Electronic
Extension Type	Flexible
Fluid Inlet Thread Gender	Female
Fluid Outlet Thread Gender	Female
IP Rating	69K
Includes	Nozzle, Extension
Inlet Size (in)	3/4
Inlet Thread Type	NPT
Maximum Flow Rate (GPM)	20
Maximum Operating Temperature (°F)	125
Maximum Recorded Dispense	19999
Maximum Storage Temperature (°F)	185
Maximum Totalizer	19999
Maximum Working Pressure (MPa)	10
Maximum Working Pressure (psi)	1500
Meter Accuracy	±0.5
Meter Accuracy (%)	±0.5
Meter Pressure Loss (psi)	150 PSI at 12 GPM
Meter Technology	Oval Gear
Metering Gun Weight (lb)	5.2
Minimum Flow Rate (GPM)	0.25
Minimum Operating Temperature (°F)	-20
Nozzle Type	Manual
Outlet Size (in)	3/4
Outlet Thread Type	ORB
Overall Height (in)	7.2
Overall Length (in)	30.7
Overall Width (in)	4.1
Recommended Environment	Indoor/Outdoor
Series	20
Trigger Lock	Locking
Trigger Protection Type	Lock Off Button
Type	Electronic Metered Dispense Valve
Unit of Measure	Quart, Pint, Liter, Gallon
Valve Type	Metered
Warranty	5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts
Wetted Material	Aluminum, Stainless Steel, Carbon Steel, Acetal, Nitrile Rubber, Geolast®
