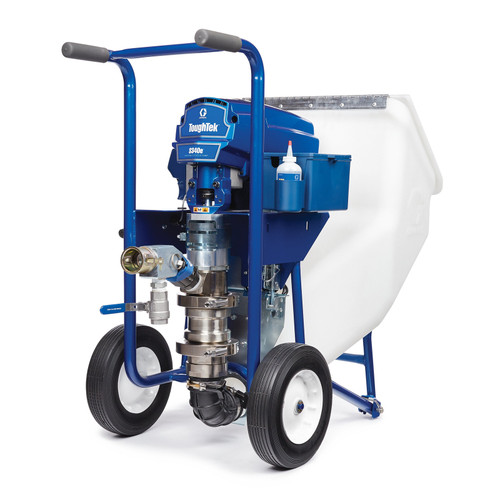

GRACO 27A303 - 27A303 Toughtek S340E Piston Pump Package, Remote On/Off Switch, 120V, 15A, Water Based Materials, 600 PSI

Complete ToughTek S340e stucco and repair mortar sprayer package featuring proven double-displacement piston pump technology for unmatched performance and long life. This compact, portable unit plugs into standard 120V outlets with no electrician required, making it ideal for bringing the sprayer closer to your work and minimizing hose lengths. Perfect for stucco application and repair mortar work with adjustable material flow control.

Engineered with Graco’s proprietary piston pump technology, the ToughTek S340e can easily handle repair mortars with small to medium sized aggregate. The S340e can also deliver all materials through long hose lengths, allowing you to spray farther distances and get the job done sooner.

Portable electric pump for stucco and EIFS applications

• Easily handles stucco and EIFS materials – base coats to finish coats, even air / water-resistive barrier materials
• Electric operation – plugs into a standard 120V, 15A wall outlet
• Extremely easy to operate
• Compact design – fits in tight areas
• Lightweight – easily lifted by two people
• Easy to transport – fits in the back of a pickup
• Fast and easy maintenance

Additional Specifications

• Flow Rate: 12 gpm (45 lpm)
• Length: 150 ft hose
• Max Working Pressure: 600 PSI (42 bar)
• Material: Water Based Materials
• Material Output: 40 bags per hr
• Maximum Particle Size: 3/16 in (5 mm)
• Power Input: 120V, 15A
• Pump Outlet Size: 1.5 in (38 mm) Camlock
• Hopper Capacity: 20 gal (76 l)
• System Weight: 210 lb (95 kg)
• Manual: 3A3437
• Power: 120V, 15A
• Pump Outlet: 1.5 in (38 mm) Camlock
• Weight: 210 lb (95 kg)
• Max Particle Size: 3/16 in (5 mm)
• Max Hose Length: 150 ft (46 m)

Features

• Quick-Access Piston Pump technology
• Remote on/off switch capability
• Compact 210 lb system design
• 40 bags per hour material output
• 20 gallon hopper capacity
• 1.5 inch Camlock pump outlet

Applications

• Water-based material spraying
• Construction material application
• Remote operation applications
• Stucco application
• Repair mortar spraying
• Construction and building maintenance

Compatible Equipment

• S340e Quick-Access Piston Pump
• Standard barrel mixers
• Camlock coupling systems

Related Parts

• 25A302, P30HT
• P40
• CM620
• CM40
• 25A302 - Bare unit with remote
• 27A218 - Stucco Spray Kit
• 27A219 - EIFS Spray Kit
• 27A004 - Material Hose
• 25D852 - Stucco Applicator

Kit Contents

• Remote switch included
• Stucco Applicator (1)
• 1 3/8 in x 50 ft (35 mm x 15 m) Material Hose

Part of the S340e system family with remote switch functionality for enhanced operator convenience and safety This is the complete package version of the ToughTek S340e that includes the stucco applicator and material hose, versus the bare unit (25A302). Features oversized clearances for minimal pressure drop and trouble-free performance.

Reference Manuals

• 3J0260EN-A (Page 3)
• 3J0262EN (Page 2)
