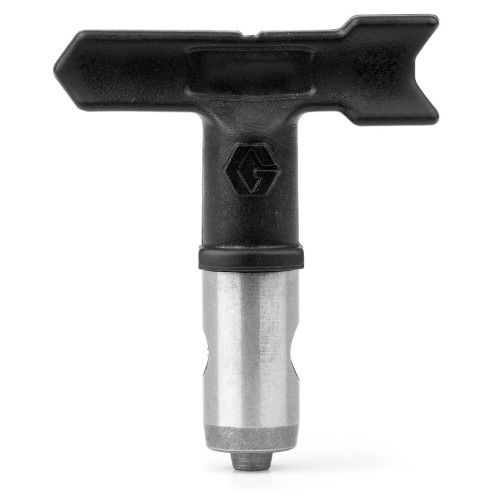

GRACO 286527 - RAC 5 SwitchTip 527, 0.027" Orifice, 10-12" Fan, 4050 PSI
Genuine GRACO RAC 5 (Reverse-A-Clean) SwitchTip, size 527, producing a 10-12" (25-30 cm) fan with a 0.027" orifice. Reverse the SwitchTip in the guard to clear clogs without disassembly. The most widely used reversible spray tip on the market (black handle), with laser-stamped tip size for easy identification. For use with the 243161 (7/8" thread) or 243263 (11/16" thread) RAC 5 HandTite Tip Guard. On LineLazer V 200MMA line stripers, tip 527 paints a 5-6" (13-15 cm) line width.
Specifications:
| Tip Size | 527 |
| Orifice Diameter | 0.027" |
| Fan Width | 10-12" (25-30 cm) |
| Maximum Working Pressure | 4050 PSI (280 bar) |
| Maximum Flow Rate | 0.77 gpm (2.91 lpm) |
| Compatible Materials | Lacquer to Mastic, Latex Paint |
| Tip Guard | RAC 5 HandTite Tip Guard |
Features:
- Reversible tip clears clogs fast - flip, spray, flip back
- Includes OneSeal for most common coatings
- Laser-stamped tip size for easy identification
- Used for residential and commercial applications
- Solvent seal available separately for extremely hot solvents
Related Parts - RAC 5 SwitchTips with 10-12" Fan:
RAC 5 SwitchTips are available in orifice sizes from 0.007" to 0.065" and fan widths from 2" to 20" - see our full RAC 5 selection.
Reference Manuals:
- 3A6466 (Page 7) - LineLazer V 200MMA 1:1 Airless Line Stripers, Operation, Repair, Parts
