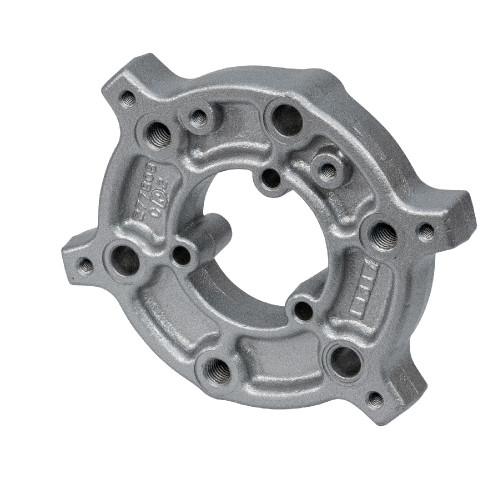

GRACO 288197 - Adapter Kit

Manifold Adapter Plate that allows the manifold to be attached to a variety of bolt patterns, providing versatility for different mounting configurations and applications

Features

• Allows manifold attachment to variety of bolt patterns
• Flexible mounting solution
• Adapter plate design
• Enables manifold attachment to various bolt patterns
• Provides mounting flexibility
• Increases mounting flexibility

Applications

• Manifold mounting applications
• Systems requiring different bolt pattern configurations
• Manifold mounting
• Multi-gun spray systems
• Industrial spray applications
• Spray gun manifold installations

Compatible Equipment

• GRACO manifolds (requires manifold for each gun to be installed)
• AirPro Automatic spray gun manifolds
• Bottom fluid port manifolds (288221 - Manifold, Bottom Inlet (In))
• Side fluid port manifolds (288217 - North America Manifold w/ Side Fluid Ports)
• Manifolds with manual fan control (288223 - North America Low Pressure Manifold w/ side fluid ports & fan adjustment valve)
• Rear port manifolds (288160 - Manifold, Rear Fitting, Inch)

Related Parts

• 288217 - Manifold with bottom fluid ports
• 288224 - Manifold with manual fan control with side fluid ports
• 288160 - Rear Port Manifold
• 288221 - Manifold, Bottom Inlet (In)
• 288217 - North America Manifold w/ Side Fluid Ports
• 288223 - North America Low Pressure Manifold w/ side fluid ports & fan adjustment valve
• 288160 - Manifold, Rear Fitting, Inch
• 288221 - Manifold with bottom fluid ports
• 288217 - Manifold with side fluid ports

Listed under Manifolds section in ordering information, designed to work with GRACO spray gun manifold systems Required accessory for manifold installations where standard bolt patterns don't match mounting requirements Required for each gun to be installed when using manifold systems. Works with the manifold family of products for spray gun applications.

Reference Manuals

• 320530 (Page 3) AA G40 Automatic
• 344790 (Page 4) AirPro Automatic Flyer
• 344969 (Page 3) G40 Automatic AA Gun Flyer
• 345179 (Page 5) 345179 PerformAA Auto Automatic Air-Assisted Spray Guns
• 311052 (Page 8) Automatic G40 Air-Assisted Spray Gun
