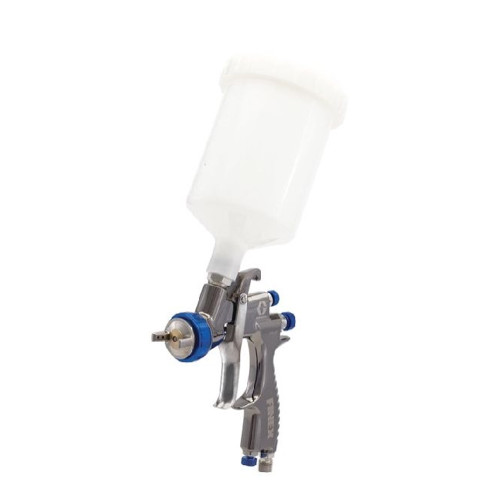

GRACO 289240 Finex Air Spray Gravity Feed Gun, HVLP, 0.059 in (1.5 mm) needle/ nozzle size
Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.
- Aircaps optimized for high quality spray performance
- Lightweight, ergonomic gun
- Lightest trigger pull in its category
- Integrated air inlet adjustment
Specifications:
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Body Material | Metal |
| Compatible Material | Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Standard Gravity Feed |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.059 |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | HVLP Gun |
| Gun Weight (lb) | 1.2 |
| Includes | Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 109 |
| Model | Finex |
| Product Type | Spray Gun |
| Spray Pattern | Flat |
| Spray Type | Air Spray |
| Technology Type | HVLP |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
