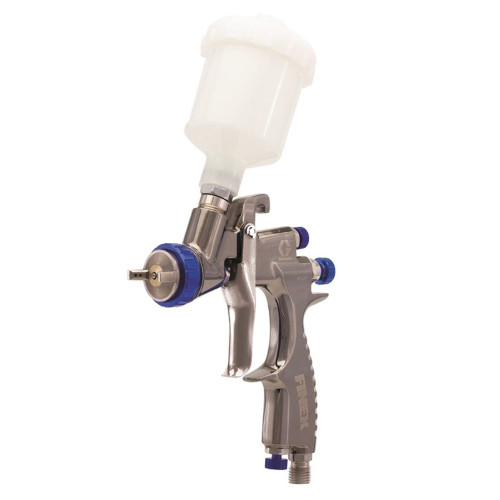

GRACO 289258 - Finex Air Spray Gravity Feed Gun, Mini, HVLP .039" Needle / Nozzle Size, 29 PSI
GRACO Finex gravity feed mini-HVLP air spray gun with 0.039 inch needle/nozzle for precision finishing applications. Features 1.0mm needle/nozzle size for fine atomization and superior finish quality in a compact, lightweight design.
Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.
- Aircaps optimized for high quality spray performance
- Lightweight, ergonomic gun
- Lightest trigger pull in its category
- Integrated air inlet adjustment
Additional Specifications
- Max Working Pressure: 29 PSI (2 bar, 0.2 MPa) maximum HVLP inbound air pressure
- Needle Nozzle Size: 0.039 inch / 1.0mm
- Gun Style: Gravity Feed Mini-HVLP
- Air Consumption: 7.0 SCFM at 29 PSI
- Operating Temp Range: 32-109°F (0-43°C)
- Needle Nozzle Size Inches: 1.0
- Diametre Pointeau Buse: 0.039 in. (1.0 mm)
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Body Material | Metal |
| Compatible Material | Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Mini Gravity Feed |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.039 |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | HVLP Gun |
| Gun Weight (lb) | 0.9 |
| Includes | Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 109 |
| Model | Finex |
| Product Type | Spray Gun |
| Spray Pattern | Flat |
| Spray Type | Air Spray |
| Technology Type | HVLP |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
Features
- Mini-HVLP design for reduced overspray
- 0.039 inch precision needle/nozzle
- Gravity feed system
- Lightweight and compact
- Fine atomization capability
Applications
- Precision finishing work
- Detail spraying
- Small parts coating
- Touch-up applications
- Fine finish requirements
Compatible Equipment
- Finex gravity feed cup systems
- 289323 - Gravity Cup Kits for Finex Mini-HVLP Gun, 125cc, plastic (125 cc Plastic gravity cup), 25R580 PPS Adapter, Gravity Feed Mini-HVLP gun systems, Mini-HVLP gravity fed spray gun
Related Parts
- 289256 (0.024/0.6)
- 289257 (0.031/0.8)
- 289259 (0.047/1.2)
- 289260 (0.055/1.4)
- 289288 (Needle, Nozzle Air Cap Kit), 289890 (Needle Packing Kit), 24F059 (Trigger Repair Kit)
- 289256 - Finex Air Spray Gravity Feed Gun, Mini, HVLP .024" Needle / Nozzle Size
- 289257 - Finex Air Spray Gravity Feed Gun, Mini, HVLP .031" Needle / Nozzle Size
- 289259 - Finex Air Spray Gravity Feed Gun, Mini, HVLP .047" Needle / Nozzle Size
Part of the GRACO Finex Mini-HVLP gun family. Requires separate needle packing kit (288890), gravity cup kit (289323), and PPS adapter (25R580). Trigger repair kit available as 24F059. Part of the Gravity Feed Mini-HVLP gun family with various needle/nozzle sizes ranging from 0.024mm to 0.055mm This is a needle/nozzle component for a Mini-HVLP gravity fed spray gun with 0.039 inch (1.0 mm) diameter tip/nozzle size
Reference Manuals
- 339461 (Page 2) Finex™ Air Spray Guns
- 312388 (Page 2) Finex Gun
