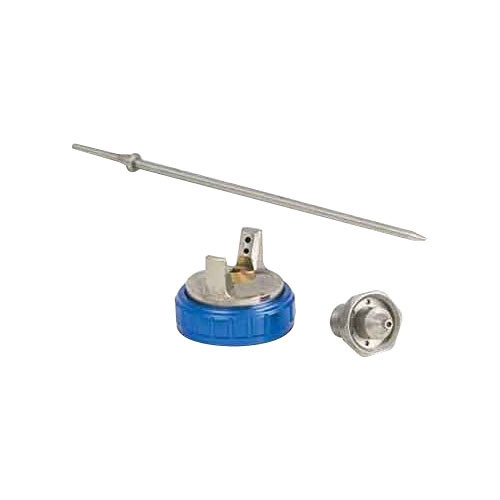

GRACO 289286 - Needle, Nozzle, Air Cap Kit for Finex Gravity Feed Mini-HVLP Guns w/ .024" Nozzle

Needle, Nozzle, and Air Cap Kit designed for GRACO Finex Gravity Feed Mini-HVLP spray guns featuring a 0.024 inch (0.6mm) nozzle size for fine finishing applications requiring precise spray patterns and minimal overspray.

Specifications

• Nozzle Size Inches: 0.024
• Nozzle Size Mm: 0.6
• Needle Nozzle Size: 0.024 in. (0.6 mm)
• Includes Parts: 1, 2, and 10

Features

• 0.024 inch (0.6mm) nozzle for fine spray patterns
• Complete needle, nozzle, and air cap kit for easy maintenance
• Designed for HVLP (High Volume Low Pressure) applications
• Gravity feed compatible for consistent material flow

Applications

• Fine finishing work
• Detail spraying
• Touch-up applications
• Precision coating work

Compatible Equipment

• GRACO Finex Gravity Feed Mini-HVLP spray guns
• Gravity Feed Mini-HVLP
• Mini-HVLP gravity feed spray guns

Related Parts

• 289257 - Needle, Nozzle Air Cap Kit (0.031"/0.8mm)
• 289288 - Needle, Nozzle Air Cap Kit (0.039"/1.0mm)
• 289289 - Needle, Nozzle Air Cap Kit (0.047"/1.2mm)
• 289290 - Needle, Nozzle Air Cap Kit (0.055"/1.4mm)
• 289287 - Needle, Nozzle, Air Cap Kit for Finex Gravity Feed Mini-HVLP Guns w/ .031" Nozzle
• 289288 - Needle, Nozzle, Air Cap Kit for Finex Gravity Feed Mini-HVLP Guns w/ .039" Nozzle
• 289289 - Needle, Nozzle, Air Cap Kit for Finex Gravity Feed Mini-HVLP Guns w/ .047" Nozzle
• 289290 - Needle, Nozzle, Air Cap Kit for Finex Gravity Feed Mini-HVLP Guns w/ .055" Nozzle
• 288895 - Gun Rebuild Kit for Finex Gravity Feed Mini-Hvlp .024-.055" Nozzle

Kit Contents

• piece 1
• piece 2
• piece 10

Part of the Gravity Feed Mini-HVLP gun system with various nozzle sizes available for different spray requirements. Uses needle packing kit 288890 and gravity cup kits 289323 (125cc plastic). This is a needle/nozzle air cap kit for 0.024 inch (0.6mm) needle/nozzle size. Other repair kits available for this gun style include Needle Packing Kit (288890), Gun Rebuild Kit (288895), Air Distributor Kit (24C308), and Trigger Repair Kit (24F059). This is a needle, nozzle, and air cap kit for Mini-HVLP gravity feed spray guns with 0.024mm (0.6) diameter needle/nozzle. Kit includes pieces 1, 2, and 10.

Reference Manuals

• 339461 (Page 2) Finex™ Air Spray Guns
• 312388 (Page 10) Finex Gun
