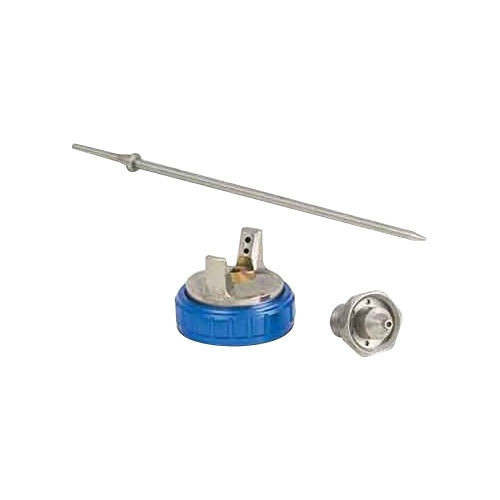

GRACO 289289 - Needle, Nozzle, Air Cap Kit for Finex Gravity Feed Mini-HVLP Guns w/ .047" Nozzle, 29 PSI

Needle, Nozzle, Air Cap Kit designed for GRACO Finex Gravity Feed Mini-HVLP spray guns with 1.2mm (.047") nozzle size. This precision-engineered kit provides optimal spray pattern control and finish quality for gravity-fed applications requiring fine atomization and high transfer efficiency.

Specifications

• Max Working Pressure: 29 PSI (2 bar, 0.2 MPa) maximum HVLP inbound air pressure
• Nozzle Size: 0.047" (1.2mm)
• Gun Type: Gravity Feed Mini-HVLP
• Air Consumption: 7.0 SCFM at 29 PSI
• Needle Nozzle Size: 0.047 inch (1.2 mm)
• Nozzle Diameter: 0.047 (1,2) mm
• Pistol Style: Mini-HVLP alimenté par gravité

Features

• Precision 1.2mm (.047") nozzle for fine finish applications
• HVLP technology for high transfer efficiency
• Gravity feed design reduces material waste
• Complete needle, nozzle, and air cap kit for optimal performance

Applications

• Fine finish spraying applications
• Gravity-fed coating systems
• High transfer efficiency requirements
• Detail work and precision coating

Compatible Equipment

• GRACO Finex Gravity Feed Mini-HVLP spray guns
• Gravity Feed Mini-HVLP
• Mini-HVLP gravity feed spray guns

Related Parts

• 289286 - Needle, Nozzle, Air Cap Kit (0.024"/0.6mm)
• 289287 - Needle, Nozzle, Air Cap Kit (0.031"/0.8mm)
• 289288 - Needle, Nozzle, Air Cap Kit (0.039"/1.0mm)
• 289290 - Needle, Nozzle, Air Cap Kit (0.055"/1.4mm)
• 288890 - Needle Packing Kit
• 289323 - Gravity Cup Kit (125cc Plastic)
• 25R580 - PPS Adapter
• 289286 - Needle, Nozzle, Air Cap Kit for Finex Gravity Feed Mini-HVLP Guns w/ .024" Nozzle
• 289287 - Needle, Nozzle, Air Cap Kit for Finex Gravity Feed Mini-HVLP Guns w/ .031" Nozzle
• 289288 - Needle, Nozzle, Air Cap Kit for Finex Gravity Feed Mini-HVLP Guns w/ .039" Nozzle

Kit Contents

• Complete needle, nozzle, and air cap assembly for 1.2mm application
• parts 1, 2, and 10
• Part 1
• Part 2
• Part 10

Part of the GRACO Finex Mini-HVLP gun system. Operating temperature range 32-109°F (0-43°C). Maximum inlet pressure 100 PSI. This is a needle, nozzle, and air cap kit for 0.047 inch nozzle size. The kit includes parts numbered 1, 2, and 10 according to the table header. This is a needle, nozzle, air cap kit for Mini-HVLP gravity feed spray guns with 0.047mm (1.2) nozzle diameter. The kit includes parts numbered 1, 2, and 10 according to the parts diagram.

Reference Manuals

• 339461 (Page 2)
• 312388 (Page 10)
