GRACO 289306 - Needle, Nozzle, Air Cap Kit for Finex Pressure Feed Conventional Guns w/ 0.039" Nozzle, 100 PSI

Needle, Nozzle, and Air Cap Kit designed for GRACO Finex pressure feed conventional spray guns with 0.039" (1.0mm) nozzle size, engineered for precision spraying applications requiring fine atomization and consistent spray patterns

Specifications

• Inside Diameter: 0.039 (1,0) mm
• Max Working Pressure: 100 PSI maximum inlet pressure
• Nozzle Size: 0.039" (1.0mm)
• Max Fluid Working Pressure: 100 PSI (7 bar, 0.7 MPa)
• Operating Temperature: 32-109°F (0-43°C)
• Air Consumption Conventional: 9.5 SCFM at 43 PSI
• Needle Nozzle Size: 0.039 inch (1.0 mm)
• Kit Includes: parts 1, 2, and 10
• Nozzle Diameter: 0.039 (1,0) mm
• Gun Type: Conventional alimenté par pression (Conventional pressure feed)

Features

• Complete needle, nozzle, and air cap kit for easy maintenance
• Fine 0.039" nozzle for detailed work and thin materials
• Designed for pressure feed conventional spray systems
• Precision engineered components for consistent spray patterns
• Compatible with Finex gun platform

Applications

• Fine finishing applications
• Thin material spraying
• Detailed coating work
• Precision spray applications requiring fine atomization

Compatible Equipment

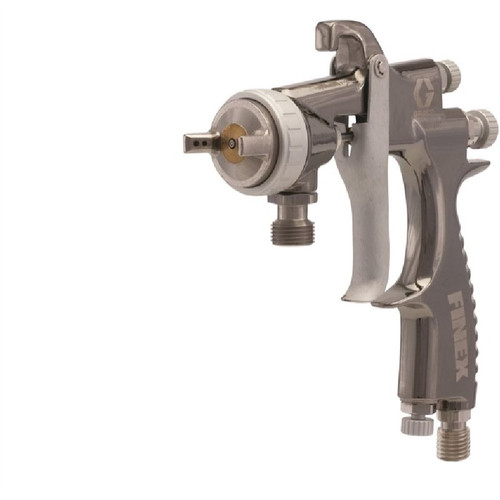

• Pressure Feed Conventional Finex guns
• Part numbers 289252 - Finex Air Spray Pressure Feed Gun, conventional .039" Needle / Nozzle Size, 289253 - Finex Air Spray Pressure Feed Gun, conventional .047" Needle / Nozzle Size, 289254 - Finex Air Spray Pressure Feed Gun, conventional .055" Needle / Nozzle Size, 289255 - Finex Air Spray Pressure Feed Gun, Conventional .071" Needle / Nozzle Size gun configurations, Pressure Feed Conventional guns, Conventional pressure feed spray guns

Related Parts

• 289307 - Needle, Nozzle, Air Cap Kit (0.047"/1.2mm)
• 289308 - Needle, Nozzle, Air Cap Kit (0.055"/1.4mm)
• 289309 - Needle, Nozzle, Air Cap Kit (0.071"/1.8mm)
• 288891 - Needle Packing Kit
• 24F061 - Trigger Repair Kit (stainless steel)
• 289307 - Needle, Nozzle, Air Cap Kit for Finex Pressure Feed Conventional Guns w/ 0.047" Nozzle
• 289308 - Needle, Nozzle, Air Cap Kit for Finex Pressure Feed Conventional Guns w/ 0.055" Nozzle
• 289309 - Needle, Nozzle, Air Cap Kit for Finex Pressure Feed Conventional Guns w/ 0.071" Nozzle

Kit Contents

• Needle component
• Nozzle component
• Air cap component
• parts 1, 2, and 10 (specific part numbers not listed in this table)

This kit provides all necessary spray tip components for 0.039" nozzle size on Finex pressure feed conventional guns. Part of a complete sizing range from 0.039" to 0.071" for various application needs. This is part of the Needle/Nozzle Cap Kit series for Pressure Feed Conventional guns. Related repair kits available include Needle Packing Kit (288891), Gun Rebuild Kit (288897†), Air Distributor Kit (24C309), and Trigger Repair Kit (24F061†). This is a needle, nozzle, and air cap repair kit for conventional pressure-fed spray guns with 0.039mm (1.0mm) nozzle diameter. Compatible repair kits include tip seal kit (288891), gun repair kit (288897), air distributor kit (24C309), and trigger replacement kit (24F061).

Reference Manuals

• 339461 (Page 2) Finex™ Air Spray Guns
• 312388 (Page 10) Finex Gun
