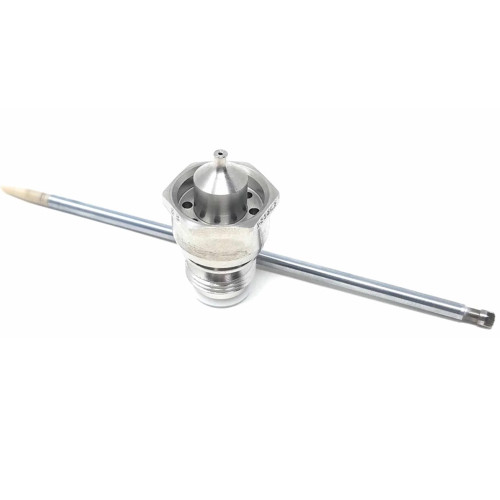

GRACO 289492 - Needle/Nozzle Kit for AirPro Siphon Feed Compliant Guns w/ 0.070" Nozzle

Needle/Nozzle Kit designed for high wear spray applications, specifically engineered for Compliant spray guns with 0.070" (1.8mm) nozzle. This kit provides replacement components for maintaining optimal spray performance in demanding applications that require medium-heavy viscosity materials.

Specifications

• Flow Rate: 4-6 (0.12-0.18) oz/min (l/min)
• Material: light-medium viscosity compatible
• Nozzle Size: 0.070" (1.8mm)
• Spray Type: Compliant
• Aircap Kit: 289768
• Material Viscosity: medium-heavy
• Spray Gun Type: Compliant
• Feed Type: Siphon Cup

Features

• 0.070" nozzle opening for precise spray control
• Designed for compliant spray applications
• Optimized for light-medium viscosity materials
• Metal siphon cup compatibility
• Complete needle/nozzle kit solution
• Designed for high wear applications

Applications

• Compliant spray finishing
• Light-medium viscosity coatings
• Professional spray applications
• Siphon feed spray systems
• High wear spray applications
• Medium-heavy viscosity coatings

Compatible Equipment

• AirPro siphon feed spray guns with metal siphon cup
• Aircap Kit 289768 - Air Cap Kit for AirPro Siphon Feed Compliant Guns w/ 0.055" or 0.070" Nozzle
• Compliant spray guns with 0.070" nozzle configuration
• Aircap Kit 289327 - Air Cap Kit for AirPro Compliant Guns w/ 0.070-0.110 inch, High Wear
• 234733 - Compliant siphon feed gun with 0.070" nozzle

Related Parts

• 289487 - Needle/Nozzle Kit (0.055" Conventional)
• 289488 - Needle/Nozzle Kit (0.070" Conventional)
• 289489 - Needle/Nozzle Kit (0.055" HVLP)
• 289490 - Needle/Nozzle Kit (0.070" HVLP)
• 289491 - Needle/Nozzle Kit (0.055" Compliant)
• 289768 - Aircap Kit
• 289327 - Aircap Kit (compatible)
• 289478 - Needle/Nozzle Kit (0.059" Compliant)
• 289480 - Needle/Nozzle Kit (0.086" Compliant)
• 289981 - Needle/Nozzle Kit (0.110" Compliant)

Kit Contents

• 289492 - Needle/Nozzle Kit (complete assembly)
• Needle and nozzle components for 0.070" spray configuration
• Needle and nozzle components (specific part numbers not detailed on page)

Part of the siphon feed system with metal siphon cup configuration. Requires separate purchase of 3M PPS cup or aluminum cup for siphon feed without cup applications. Part of the High Wear Applications product line, indicating enhanced durability for demanding spray environments. Works with Aircap Kit 289327 for complete gun setup. Part of the AirPro siphon feed gun system. Works specifically with compliant spray guns using siphon cup feed method.

Reference Manuals

• 339377 (Page 10) AirPro Spray gun
• 339380 (Page 3) AirPro Air Spray Gun Parts
• 312578 (Page 16) AirPro Siphon Feed Airspray Gun
