Item #: 2A25045
Price: $2,012.14
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

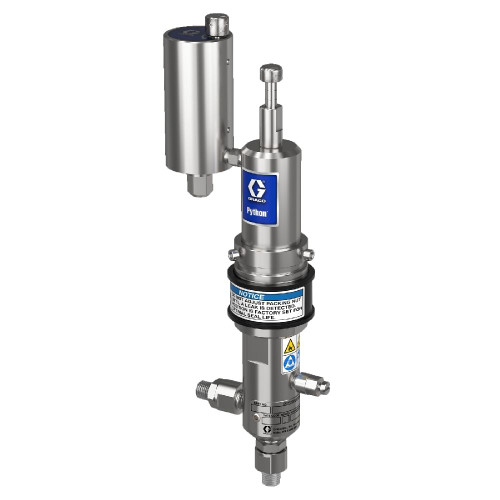

GRACO 2A25045 - Python Pneumatic Chemical Injection Pump, 1-1/4" Air Motor, 3/8" Plunger, HNBR Seals, 1500 PSI
Python pumps are ideal for applications that require a pump to operate in hazardous locations and can run off regulated natural gas or compressed air. These pumps have the lowest out-of-pocket cost, are easy to operate and can use half the air consumption of many other pumps on the market. Plus, the Python’s extreme duty plungers, seals and timing valve are designed for years of operation before replacement.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Motor Size (in) | 1-1/4 |
| Approvals | CE & ATEX |
| Compatible Material | Corrosion Inhibitors, Methanol, Scavengers |
| Fluid Outlet Size (in) | 1/4 |
| Material | Stainless Steel |
| Maximum Air Inlet Pressure (psi) | 200 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (GPD) | 41 |
| Maximum Working Pressure (MPa) | 48.3 |
| Maximum Working Pressure (psi) | 7000 |
| Model | Python |
| Plunger Rod Coating | Chromex |
| Plunger Size (in) | 3/8 |
| Pump Material | 316 Stainless Steel |
| Seal Material | HNBR |
| Standards Met | CE, ATEX |
| Type | Pneumatic Chemical Pump |
| Voltage | N/A |
| Wetted Material | Stainless Steel |
Related Parts
Part is listed in a models table with configuration number PCI-125-38-XCS-0. Maximum pneumatic inlet pressure column is empty for this part.
Reference Manuals
GRACO 2A25045 - Python Pneumatic Chemical Injection Pump, 1-1/4" Air Motor, 3/8" Plunger, HNBR Seals, 1500 PSI
Python pumps are ideal for applications that require a pump to operate in hazardous locations and can run off regulated natural gas or compressed air. These pumps have the lowest out-of-pocket cost, are easy to operate and can use half the air consumption of many other pumps on the market. Plus, the Python’s extreme duty plungers, seals and timing valve are designed for years of operation before replacement.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Motor Size (in) | 1-1/4 |
| Approvals | CE & ATEX |
| Compatible Material | Corrosion Inhibitors, Methanol, Scavengers |
| Fluid Outlet Size (in) | 1/4 |
| Material | Stainless Steel |
| Maximum Air Inlet Pressure (psi) | 200 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (GPD) | 41 |
| Maximum Working Pressure (MPa) | 48.3 |
| Maximum Working Pressure (psi) | 7000 |
| Model | Python |
| Plunger Rod Coating | Chromex |
| Plunger Size (in) | 3/8 |
| Pump Material | 316 Stainless Steel |
| Seal Material | HNBR |
| Standards Met | CE, ATEX |
| Type | Pneumatic Chemical Pump |
| Voltage | N/A |
| Wetted Material | Stainless Steel |
Related Parts
Part is listed in a models table with configuration number PCI-125-38-XCS-0. Maximum pneumatic inlet pressure column is empty for this part.
Reference Manuals
