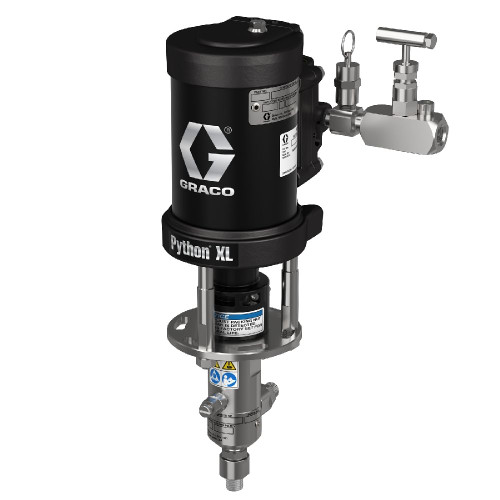

GRACO 2A25209 - Python XL Pneumatic Chemical Injection Pump, 2-1/2" Air Motor, Chromex Coated 3/4" Plunger, FKM-ETP Seals, 1100 PSI
Python XL pumps are ideal for wells with low gas or compressed air inlet pressure. Capable of operating up to 7,000 PSI, the pumps are easy to operate and include an air motor with the same proven technology that Graco offers in other product lines. Plus the Python XL’s extreme duty plungers (Chromex™ and ceramic coated), seals and air valves are designed for years of operation before replacement.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Air Motor Size (in) | 2-1/2 |
| Application | Non-Hazardous Location |
| Approvals | CE |
| Compatible Material | Chemicals |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Continuous Cycle Rate (CPM) | 100 |
| Maximum Operating Temperature (°F) | 176 |
| Maximum Working Pressure (MPa) | 7.7 |
| Maximum Working Pressure (psi) | 1111 |
| Minimum Operating Temperature (°F) | -40 |
| Model | Python |
| Plunger Rod Coating | Chromex |
| Plunger Size (in) | 3/4 |
| Pump Material | 316 Stainless Steel |
| Seal Material | FKM-ETP |
| Series | XL |
| Standards Met | CE |
| Type | Pneumatic Chemical Pump |
| Voltage | N/A |
Related Parts
Part of PCI-250-75 series with XBL and XCL, XDL variants
