Item #: 2A25217
Price: $2,815.71
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

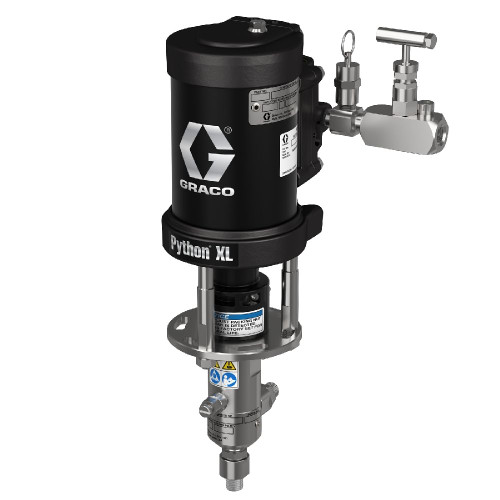

GRACO 2A25217 - Python XL Pneumatic Chemical Injection Pump, 2-1/2" Air Motor, Chromex Coated 1/2" Plunger, FFKM Seals, 2500 PSI
Python XL series pumps are ideal for wells with low gas pressure. Capable of operating up to 7,000 PSI, the pumps are easy to operate and include an air motor with the same proven technology that Graco offers in other product lines. Plus the Python XL’s extreme duty plungers (Chromex™ and ceramic coated), seals and air valves are designed for years of operation before replacement.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Air Motor Size (in) | 2-1/2 |
| Application | Non-Hazardous Location |
| Approvals | CE |
| Compatible Material | Chemicals |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Continuous Cycle Rate (CPM) | 100 |
| Maximum Operating Temperature (°F) | 176 |
| Maximum Working Pressure (MPa) | 17.2 |
| Maximum Working Pressure (psi) | 2500 |
| Minimum Operating Temperature (°F) | -40 |
| Model | Python |
| Plunger Rod Coating | Chromex |
| Plunger Size (in) | 1/2 |
| Pump Material | 316 Stainless Steel |
| Seal Material | FFKM |
| Series | XL |
| Standards Met | CE |
| Type | Pneumatic Chemical Pump |
| Voltage | N/A |
Related Parts
This is part of the PCI-250 series with 50 designation and XDS-0 configuration
Reference Manuals
GRACO 2A25217 - Python XL Pneumatic Chemical Injection Pump, 2-1/2" Air Motor, Chromex Coated 1/2" Plunger, FFKM Seals, 2500 PSI
Python XL series pumps are ideal for wells with low gas pressure. Capable of operating up to 7,000 PSI, the pumps are easy to operate and include an air motor with the same proven technology that Graco offers in other product lines. Plus the Python XL’s extreme duty plungers (Chromex™ and ceramic coated), seals and air valves are designed for years of operation before replacement.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Air Motor Size (in) | 2-1/2 |
| Application | Non-Hazardous Location |
| Approvals | CE |
| Compatible Material | Chemicals |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Continuous Cycle Rate (CPM) | 100 |
| Maximum Operating Temperature (°F) | 176 |
| Maximum Working Pressure (MPa) | 17.2 |
| Maximum Working Pressure (psi) | 2500 |
| Minimum Operating Temperature (°F) | -40 |
| Model | Python |
| Plunger Rod Coating | Chromex |
| Plunger Size (in) | 1/2 |
| Pump Material | 316 Stainless Steel |
| Seal Material | FFKM |
| Series | XL |
| Standards Met | CE |
| Type | Pneumatic Chemical Pump |
| Voltage | N/A |
Related Parts
This is part of the PCI-250 series with 50 designation and XDS-0 configuration
Reference Manuals
