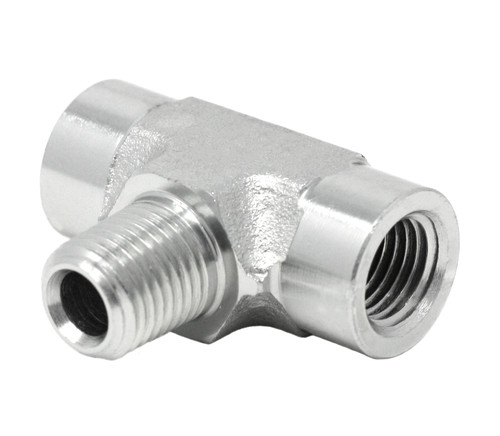

GRACO 556420 - Male Run Tee Fitting - 1/4" NPT Male x (2) 1/4" NPT Female

1/4 NPT service tee designed for professional fluid handling systems. This service tee provides reliable connection points for pressure monitoring, sampling, or auxiliary equipment in quintuplex pumping applications. Essential component for system maintenance and operational monitoring.

Specifications

• Thread: 1/4 NPT

Features

• 1/4 NPT threaded connections for secure fitting
• Service tee configuration for branching applications
• Compatible with both 12V and 24V Triplex systems
• Engineered for professional pumping operations
• 1/4 NPT threaded connections
• Service tee configuration

Applications

• Triplex pump systems
• G3 Pro Grease pumping applications
• MSP Series Progressive systems
• Hydraulic fluid distribution
• Service line branching connections
• Quintuplex pumping systems

Compatible Equipment

• G3 Pro Grease 12V systems
• G3 Pro Grease 24V systems
• MSP Series Progressive systems
• Triplex pump configurations
• G3 Pro Grease pumps
• Quintuplex pump configurations

Related Parts

• 563160 - Automatic Relief Indicator for MX Divider Valves, 2500 psi
• 557874 - Stud Fill 4ts5-21000
• 557875 - Dust Cap for Fill Stud, 1/4" NPT
• 563061 - Double Ball Check Valve 48 PSI Nominal Cracking PSI, 1/4" NPSF (F) x 1/4" NPSF (F), SS Body/FKM Ball, 7500 PSI
• 555453 - Steel Hex Shoulder Nipples - Straight, 1/4" x 1/4" Threads, 1/4 NPT, Up to 2
• 156971 - Hose Fitting, 1/4" NPT(M) x 1/4" NPT(M), 1/4" x 1/4"
• 96G147 - G3 Pro pump 12 V
• 96G149 - G3 Pro pump 24 V
• 563160 - 2,500 psi relief
• 563174 - 2,000 psi relief indicator

This fitting is included as a standard component in both 12V and 24V Triplex Frac Kit assemblies, indicating its critical role in professional pumping system configurations. This service tee is included as a standard component in both the 12V and 24V G3 Pro Grease / MSP Series Progressive Quintuplex Kits, indicating its importance for proper system operation and maintenance access. This part is included in both 12 VDC and 24 VDC Triplex Kit configurations as a standard component for service line connections

Reference Manuals

• 352295 (Page 4) Fracturing Equipment Selection Guide
• 333508 (Page 75) Komatsu Wheel Loader Installation
• 333510 (Page 65) Komatsu HM300-5/HM400-5;
• 333514 (Page 50) omatsu PC210/PC240/ PC290 and PC360/PC390/PC490 Excavator Installtion
• 333584 (Page 54) Komatsu HD325-8 and 405-8 Haul Truck Installation
