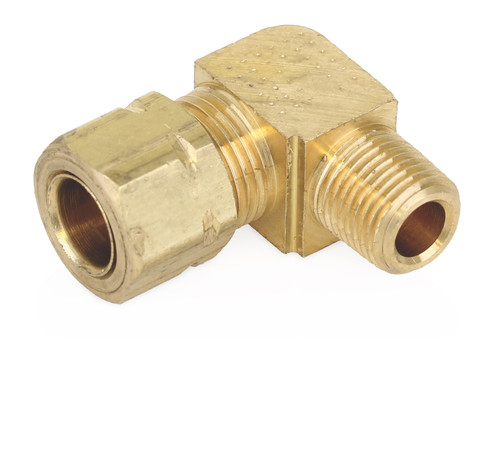

GRACO 556638 - Fitting - Brass Male Tube Elbows 3/16" Tube x 1/8" NPT(F)

High-quality brass male tube elbow fitting designed for GRACO Electric Grease Jockey automatic lubrication systems, providing reliable connection between 3/16 inch tubing and 1/8 NPT female ports

Additional Specifications

• Fitting Type: male tube elbow
• Connection Type: Male tube to female NPT
• Angle: 90 degree elbow

Specifications

Features

• Brass construction for durability
• 90-degree elbow configuration
• Tube to NPT thread connection
• Designed for automatic lubrication systems
• Male tube elbow design
• Standard NPT threading

Applications

• GRACO Electric Grease Jockey systems
• Automatic lubrication systems
• Industrial equipment lubrication
• Connection of grease lines in tight spaces
• Electric grease jockey automatic lubrication systems
• 5th wheel lubrication points

Compatible Equipment

• GRACO Electric Grease Jockey pumps
• 25C990 Electric Grease Jockey
• 25C991 Electric Grease Jockey
• 25C992 Electric Grease Jockey with DMS
• 25C993 Electric Grease Jockey with DMS
• Electric Grease Jockey systems

Related Parts

• 25C977
• 25C978
• 25C979 - Electric Grease Jockey System Truck w/ Greaseable Spring Pins - 1/4-28" to 1/8" NPT Female, 5-Pack
• 25C980
• 556639 - 5/16 tube x 1/8 NPTF brass male tube elbow
• 556640 - 5/16 tube x 1/4 NPTF brass male tube elbow

Listed in End-Point Fittings section with 2 modules and 3 as example BOM quantities for system specification This fitting is included as part of kit 25C977 which contains 10 pieces, used in lubrication system end-point connections Part of the brass male tube elbow family, with old part number 435-440-030

Reference Manuals

• 352635 (Page 2) Graco Electric Grease Jockey® Automatic Lubrication System
• 353470 (Page 6) Electric Grease Jockey
• L12100EN - C (Page 27)
• L44000EN - A (Page 4)
• 312054 (Page 26) Grease Jockey Chassis Lubrication System
