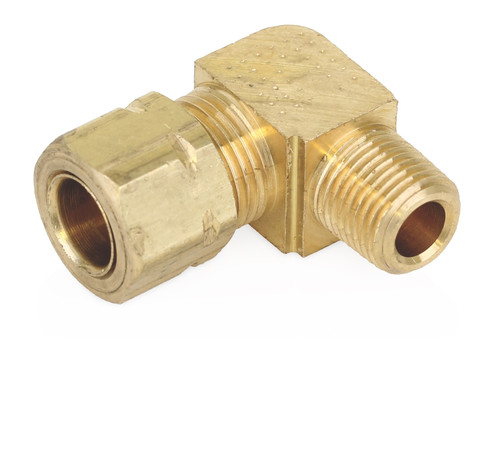

GRACO 556640 - Fitting - Brass Male Tube Elbows 5/16" Tube x 1/4" NPT(F)

Brass male tube elbow fitting designed for connecting 5/16" tubing to 1/4" NPT female threaded ports at 90-degree angles in fluid handling systems

Specifications

• Thread: 5/16 tube x 1/4 NPTF
• Material: Brass
• Angle: 90 degrees
• Connection Type: tube to female NPT
• Tube Size: 5/16 in.
• Type: Male Elbow

Features

• Brass construction for durability and corrosion resistance
• 90-degree elbow design for directional changes
• Male tube to female NPT connection
• Compact fitting for space-constrained installations

Applications

• Fluid handling systems
• Pneumatic systems
• Hydraulic connections
• Industrial equipment piping

Compatible Equipment

• Fifth Wheel Module 563648

Related Parts

• 556638 - 3/16 tube x 1/8 NPTF
• 556639 - 5/16 tube x 1/8 NPTF

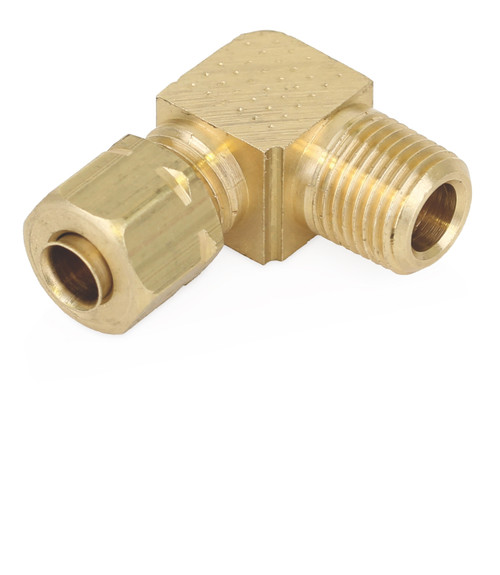

• 556638 - Fitting - Brass Male Tube Elbows 3/16" Tube x 1/8" NPT(F)
• 556639 - Fitting - Brass Male Tube Elbows 5/16" Tube x 1/8" NPT(F)

Part of the Brass Male Tube Elbows family with old part number 435-440-070 Part of Male 90° Elbow series with different NPT and tube size combinations Used for main line connection in Fifth Wheel Module system. May be used with plugs or straight fittings to allow grease flow to next module.

Reference Manuals

• L12100EN - C (Page 27)
• 312054 (Page 26) Grease Jockey Chassis Lubrication System
• 312886 (Page 2) Lubriquip Grease Jockey Single Axle Module 563647
• 312887 (Page 2) Lubriquip Grease Jockey 5th Wheel Module Kit 533648
• 313020 (Page 2) Grease Jockey 5th Wheel Manifold Kit
