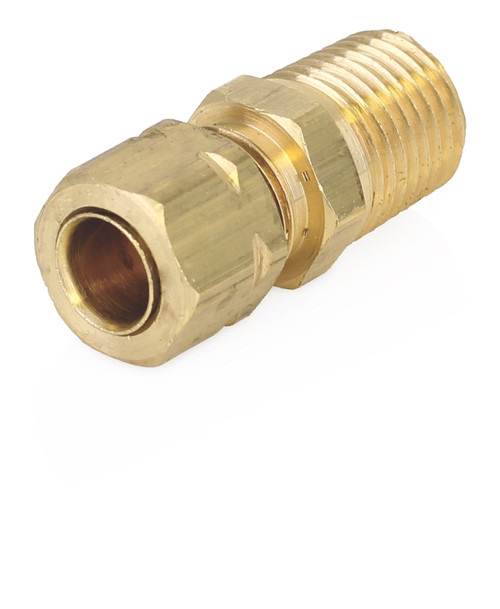

GRACO 556645 - Fitting - Male Connector, 5/16" tube x 1/8" NPT(F)

Male connector designed for 5/16" tube to 1/8" NPT female thread connections in fluid handling systems. Part of GRACO's brass connector line for reliable, leak-free connections in lubrication and fluid transfer applications.

Specifications

• Thread: 5/16" tube x 1/8" NPTF
• Material: Brass
• Tube Size: 5/16 inch

Features

• Brass construction for durability and corrosion resistance
• Male connector design for secure connections
• Compatible with 5/16" tubing systems
• 1/8" NPTF threading for standard pipe connections

Applications

• Lubrication system connections
• Fluid transfer systems
• Pneumatic and hydraulic applications
• Industrial equipment fluid lines

Compatible Equipment

• L12100 series equipment
• 5/16" tubing systems
• 1/8" NPTF threaded components
• CSP EZ Greaser Front Axle 18 Point #25T380

Related Parts

• 556642 - General Tube Fitting - Female Connector - 3/16" Tube, 1/8" NPT
• 556643 - Fitting - Female Connector - 5/16" Tube, 1/8" NPT
• 556644 - Fitting - 3/16" tube compression to 1/8" NPT
• 556646 - Fitting - Male Connector, 5/16" tube x 1/4" NPT(F)
• 15K740
• 556638 - Fitting - Brass Male Tube Elbows 3/16" Tube x 1/8" NPT(F)

Part of comprehensive brass connector family. Old part number was 435-460-060. Part of Male Connector family with different tube sizes and NPT specifications Used as endpoint fitting for Tie-Rod End (Point No. 3) with black tube color

Reference Manuals

• L12100EN - C (Page 26)
• 312054 (Page 26) Grease Jockey Chassis Lubrication System
• 3A8027 (Page 1) CSP EZ Greaser, Front Axle 18 Point #25T380
• 3A8028 (Page 1) CSP EZ Greaser, Front Axle 14 Point #25T381
• 3A8029 (Page 1) CSP EX Greaser, Front Axle 12 Point #25T382
