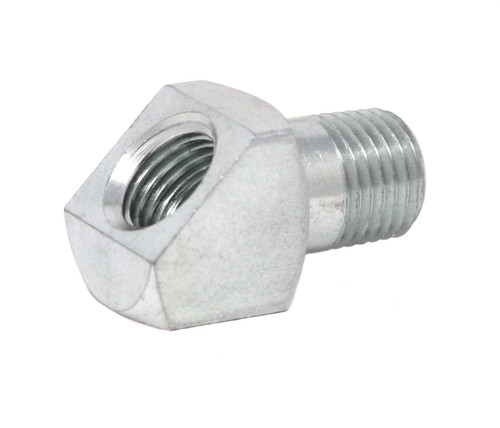

GRACO 557395 - Tube Fitting - 45° Street Elbow - 1/8 NPT Male x 1/8 NPT Female

45° Street Elbow fitting with 1/8 NPTF threading, designed for creating angled connections in pneumatic and hydraulic systems. This compact elbow fitting allows for efficient routing of air lines and fluid connections in tight spaces.

Specifications

• Thread: 1/8 NPTF
• Angle: 45 degree
• Connection Type: Street Elbow

Features

• 45° angled connection
• 1/8 NPTF threading
• Street elbow design
• Compact fitting for tight spaces

Applications

• Pneumatic systems
• Air line connections
• Fluid routing
• Equipment plumbing

Compatible Equipment

• 5th Wheel Top Plate Right Hand Rear

Related Parts

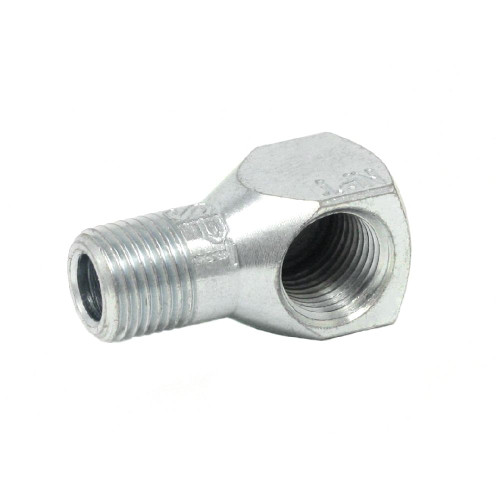

• 15K740 - 90° Street Elbow Adapter, 1/4-28 SAE Male x 1/8 NPTF Female, 1" (26 mm) Long
• 15K783 - Pipe Fitting - 90° Street Elbow, 1/8" (F) x 1/8" (M) Threads, Steel, 1/8 NPTF
• 556638 - Fitting - Brass Male Tube Elbows 3/16" Tube x 1/8" NPT(F)
• 556639 - Fitting - Brass Male Tube Elbows 5/16" Tube x 1/8" NPT(F)
• 556640 - Fitting - Brass Male Tube Elbows 5/16" Tube x 1/4" NPT(F)
• 155699 - Street Elbow Pipe Fitting, 3/8 NPT(M) x 3/8 NPT(F), 7250 PSI (500 Bar)
• 556644 - Fitting - 3/16" tube compression to 1/8" NPT

Part of the ELBOWS product family. Old part number was 509-111-000. Part of the Elbow Street family which includes 90 degree and other configurations Used in conjunction with 556644 Connector for 5th wheel top plate applications. Associated with 8 meter size black tube connections with 2-tube unmarked bundle marking.
