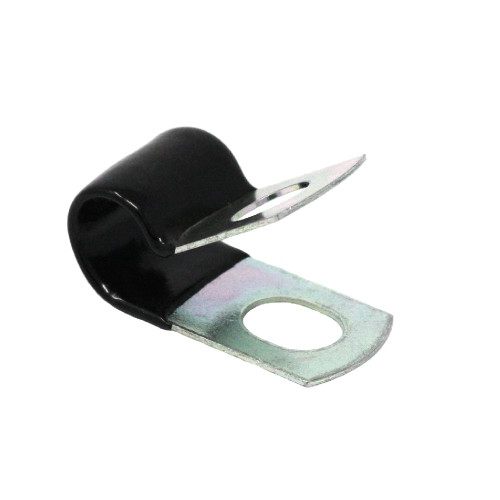

GRACO 557944 - Tube/Hose Clamp - 7/16" OD

Heavy-duty harness clamp designed for securing and organizing tubing, hoses, and cables in fluid handling systems. Features durable construction for reliable performance in demanding spray finishing and industrial applications.

Specifications

• Outside Diameter: 7/16" (11.11mm)
• Clamp Type: harness clamp/bracket
• Hole Size: 7/16 in.

Features

• Secure clamping action for 7/16" diameter tubing/hoses
• Durable construction for industrial applications
• Easy installation and removal
• Helps organize and route fluid lines
• Prevents chafing and wear on hoses

Applications

• Spray finishing systems
• Industrial fluid handling
• Tubing and hose management
• Equipment harness organization
• Paint booth installations

Compatible Equipment

• 7/16" OD tubing and hoses
• GRACO spray equipment
• Industrial fluid systems

Related Parts

• 557943 - 5/16" diameter harness clamp
• 557946 - 3/8" diameter harness clamp
• 557947 - 1/2" diameter harness clamp
• 557945 - 5/8" diameter harness clamp
• 127515 - Hose Clamp - 1 1/2" OD x 9/32" Mounting Hole

Part of GRACO's harness clamp family available in multiple diameters for different tubing sizes Part of a family of clamps with different hole sizes: 5/16 in. (557943), 3/8 in. (557946), 7/16 in. (557944), and 5/8 in. (557945) Part 127515 is listed as 'P-Clamp 1.5 inch' which appears to be a related P-clamp with specific dimension

Reference Manuals

• L12100EN - C (Page 27)
• 312054 (Page 25) Grease Jockey Chassis Lubrication System
• 333510 (Page 65) Komatsu HM300-5/HM400-5;
• 333518 (Page 25) CAT Wheel Loader Centralized Lubrication System Installation, Mobile Lubrication Library
• 333519 (Page 23) CASE Wheel Loader Centralized Lubrication System Installation
