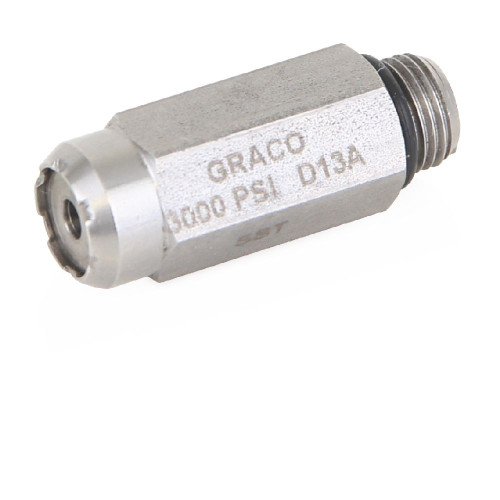

GRACO 563161 - Automatic Relief Indicator for MX Divider Valves, 3000 PSI, MX only, 1/4 in NPTF

Automatic Relief Indicator designed to pinpoint lube line blockage while allowing the lube system to continue supplying lubrication to points that are not blocked. Used primarily in secondary divider valves, this performance indicator creates excessive pressure when line blockage occurs, moving a piston that enables lubricant to escape through a vent. When the blockage is removed, the spring resets the piston, allowing continuous system operation.

Keep your machine running while lubrication gets to critical points. These performance indicators pinpoint lube line blockages but allow the lube system to continue to supply lubrication to points that are not blocked.

Additional Specifications

• Thread: 1/4 in NPTF
• Max Working Pressure: 207 bar, 3000 PSI
• Material: MX only (not MXP)
• Tolerance: ± 24%
• Thread Type: NPTF MX only
• Color: Purple
• Pressure Mpa: 34 MPa
• Pressure Bar: 344 bar

Specifications

Features

• 3000 PSI pressure relief capability
• Compatible with pressure relief-to-atmosphere kits
• Designed for G3 pump system protection
• Pinpoints lube line blockage
• Allows system to continue operating when lube point is blocked
• Spring-loaded piston mechanism with automatic reset

Applications

• Overpressure protection for G3 pump systems
• Use with pressure relief-to-atmosphere kits
• Industrial pumping applications requiring high pressure relief
• Secondary divider valves
• Lubrication systems requiring blockage detection
• Systems where continuous operation during partial blockage is critical

Compatible Equipment

• 571058 - G-Series Pump Accessories Pressure Relief-to-Atmosphere Kit (Requires Pressure Relief Valve ) - Pressure Relief-to-Atmosphere Kit with NPT outlet
• 571070 - G-Series Pump Accessories Pressure Relief Valve Adapter, 1/4 BSPP - Pressure Relief-to-Atmosphere Kit with BSPP outlet, G3 pump systems, MX divider valves (not MXP), 1/4 in NPTF threaded connections, MX Divider Valves

Related Parts

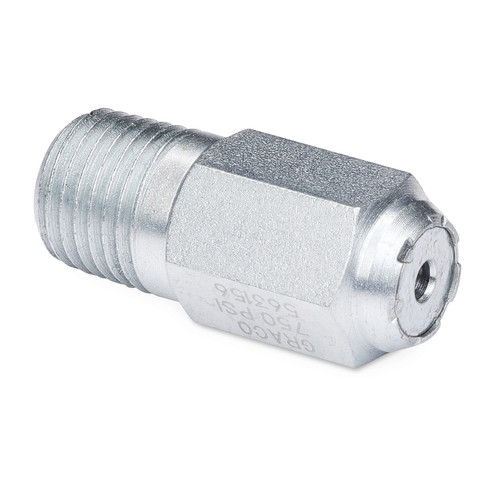

• 563156 - Pressure Relief Valve 52 bar, 750 PSI
• 563157 - Pressure Relief Valve 69 bar, 1000 PSI
• 563158 - Pressure Relief Valve 103 bar, 1500 PSI
• 563159 - Pressure Relief Valve 138 bar, 2000 PSI
• 563160 - Pressure Relief Valve 172 bar, 2500 PSI
• 571058 - G-Series Pump Accessories Pressure Relief-to-Atmosphere Kit (Requires Pressure Relief Valve )
• 571070 - G-Series Pump Accessories Pressure Relief Valve Adapter, 1/4 BSPP
• 563156 - Automatic Relief Indicator for Mx Divider Valves, 750 PSI, 1/4" NPTF
• 563157 - Automatic Relief Indicator for Mx Divider Valves, 1000 PSI, 1/4" NPTF
• 563158 - Automatic Relief Indicator for MX Divider Valves, 1500 PSI

This is the highest pressure rated valve in the series and is required for use with the 571058/571070 pressure relief-to-atmosphere kits. Formerly identified by spring retainer color. Pressure ratings are now stamped on the body. If replacing indicators with pressure ratings no longer available, select available indicators with the next higher pressure rating. Separate pressure switch connection recommended for audible or visual alarm systems. This is an automatic relief indicator that pinpoints lube line blockage but allows the lube system to continue supplying lubricant to points that are not blocked. Used primarily in secondary divider valves. The excessive pressure created by line blockage moves a piston, enabling the lubricant to escape through a vent. When pressure is relieved the spring resets the piston. A separate pressure switch connected to an audible or visual alarm should be used to warn of high pressure. Color is provided for service and not in selection of replacement indicator.

Reference Manuals

• 340574 (Page 8)
• 340706 (Page 5)
• L15401EN-C (Page 2)
• 312497 (Page 39)
• 332291 (Page 35)
