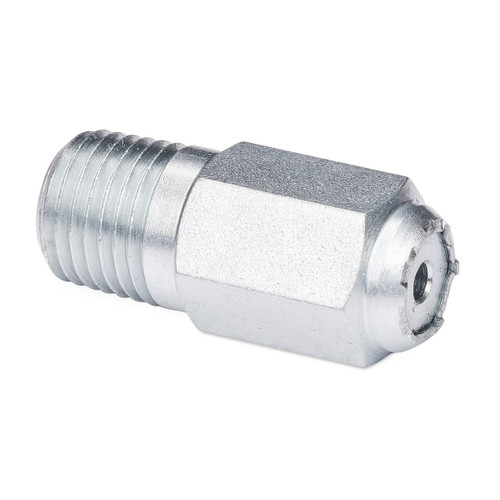

GRACO 563163 - Valve Relief 1/8 NPT 750 PSI, 1/8 NPTF

Automatic Relief Indicator that pinpoints lube line blockage while allowing the lube system to continue supplying lubrication to points that are not blocked. Used primarily in secondary divider valves, the excessive pressure created by line blockage moves a piston, enabling lubricant to escape through a vent. When lubrication is restored, the spring resets the piston, allowing the lube system to keep operating even when a lube point is blocked.

Specifications

• Thread: 1/8 NPTF
• Max Working Pressure: 52 bar
• Part Number: 563163
• Order Code: 508-310-075
• Retainer Color: Blue
• Color: Blue
• Type: Automatic Relief Indicator
• Compatible Valve Types: MJ, MH, MSP, MXP

Features

• Automatic relief indication
• Visual pressure monitoring
• Designed for professional spray equipment
• Pinpoints lube line blockage
• Allows lube system to continue operating when blocked
• Automatic pressure relief through vent system

Applications

• Pressure monitoring on MJ series equipment
• Pressure monitoring on MS series equipment
• Pressure monitoring on MH series equipment
• Pressure monitoring on MXP series equipment
• Secondary divider valves
• Lubrication systems requiring blockage detection

Compatible Equipment

• MJ series
• MS series
• MH series
• MXP series
• MJ
• MH

Related Parts

• 563164 - Valve Relief 1/8 NPT 1000 PSI, 1/8 NPTF
• 563166 - Valve Relief 1/8 NPT 1500 PSI, 1/8 NPTF
• 563167 - Valve Relief 1/8 NPT 2000 PSI, 1/8 NPTF
• 563168 - Relief Valve, 1/8" NPT 2500 PSI, 1/8" NPTF
• 563169 - Relief Valve, 1/8 NPT 3000 PSI, 1/8 NPTF
• 563170 - Valve Relief Indicator O-Ring 750 PSI, 1/8" NPTF
• 563171 - Valve Relief Indicator O-Ring 1000 PSI, 1/8" Npsf w/o-Ring
• 563172 - Valve Relief Indicator O-ring 1250 psi
• 563173 - Valve Relief Indicator O-ring 1500 psi

Part of a series of automatic relief indicators with different pressure ratings from 52 bar to 207 bar. Also available with O-Ring seal versions (563170-563176). Requires separate pressure switch connected to audible or visual alarm for high pressure warning. Blue retainer indicates 750 psi pressure rating. If replacing indicators no longer available, select next higher pressure rating. An automatic relief indicator that pinpoints lube line blockage but allows the lube system to continue supplying lubricant to points that are not blocked. Used primarily in secondary divider valves. Blue color coded for identification by color of the spring retainer located in the end of the indicator.

Reference Manuals

• 339427 (Page 22) Automatic Lubrication Systems
• L15401EN - C (Page 2)
• 312497 (Page 39) Trabon Divider Valves .
