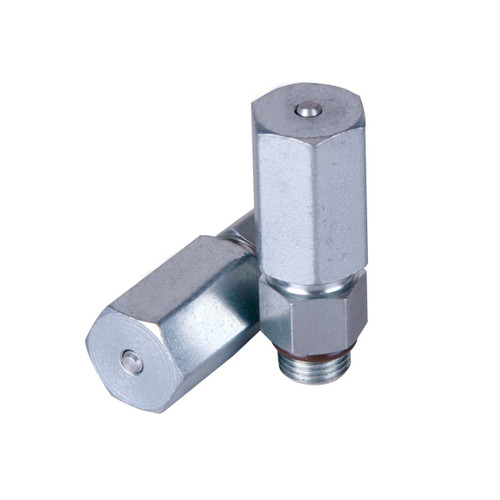

GRACO 563190 - Relief Valve, 1/4 5500 PSI

VALVE, pressure relief, 5500 PSI (37.92 MPa, 379.21 bar)

• 5500 PSI (37.92 MPa, 379.21 bar)

Additional Specifications

• Max Working Pressure: 5500 PSI (37.92 MPa, 379.21 bar)

Compatible Equipment

• G3
• G1
• G-Mini Pumps
• G1 and G3 Pumps

Related Parts

• 16C807 - Pressure Relief Valve for G1 & G3 Pumps, 3500 PSI
• 563156 - Automatic Relief Indicator for Mx Divider Valves, 750 PSI, 1/4" NPTF
• 563157 - Automatic Relief Indicator for Mx Divider Valves, 1000 PSI, 1/4" NPTF
• 563158 - Automatic Relief Indicator for MX Divider Valves, 1500 PSI
• 563159 - Automatic Relief Indicator for Mx Divider Valves, 2000 PSI, 1/4" NPTF
• 563160 - Automatic Relief Indicator for MX Divider Valves, 2500 PSI
• 563161 - Automatic Relief Indicator for MX Divider Valves, 3000 PSI

Pressure Relief Valve 16C807 can only be used on the G3, G1, or G-Mini Pumps. It is not intended for use with any other products. The pressure relief valve uses a pressure adjustment screw to set the pressure release point. It is not intended as a way to relieve pressure during normal operation, but as a protective measure in the event there is an unintended pressure increase in the system. Each pressure relief valve requires banjo kit p/n 571058 (Except 16C807 because the banjo is already included in kit 571028). Important: Pressure Relief Valve 16C807 can only be used on the G1 and G3 Pumps. It is not intended for use with any other products. The pressure relief valve is not intended as a way to relieve pressure during normal operation, but as a protective measure in the event there is an unintended pressure increase in the system. Do not use this pressure relief valve as a means of relieving pressure in day-to-day, normal cycle operation. Part of pressure relief valve family. Important note: Pressure Relief Valve 16C807 can only be used on the G3 pump and is not intended for use with any other products. Turning adjustment screw clockwise increases pressure.

Reference Manuals

• 332305 (Page 85) G3 Max Automatic Lubrication Pump
• 332317 (Page 32) G1 Control Lubrication Pump
• 3A6319 (Page 20) G3 One-Piece Automatic Lubrication Pump
• 3A8242 (Page 20) G3 One-Piece Automatic Lubrication Pump
• 3A9511 (Page 16) G3 Max GEN 2 Automatic Lubrication Pump
