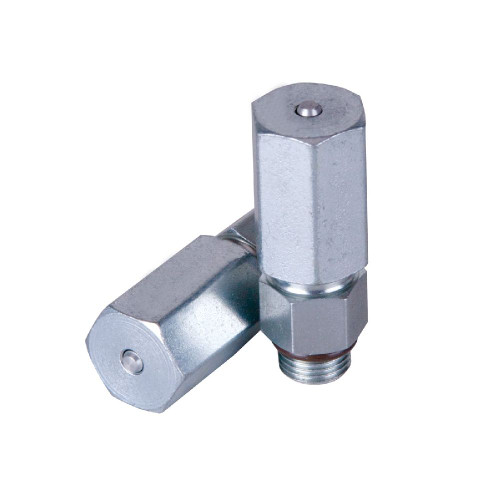

GRACO 563224 Trabon® Replacement Rupture Indicator, 1/8-27 NPSF with O-Ring, 5500 psi
Used on MH divider valve applications where lube system pressures exceed 2,500 psi (172 bar).
- High pressure from blockage causes a disc to rupture
- Lubricant forces an indicator pin to protrude, indicating the blockage
- High pressure backs up through the system and trips a switch to shut the system off
- When fault is corrected, disc must be replaced and pin reset
Specifications:
| Application | In-Plant Machinery |
| Compatible Material | Oil |
| Connection Size (in) | 0.125 |
| Indicator Type | Rupture Indicator |
| Maximum Working Pressure (MPa) | 38 |
| Maximum Working Pressure (psi) | 5500 |
| Overall Length (in) | 1.77 |
| Overall Width (in) | 0.56 |
| Thread Type | NPSF |
| Type | Relief Indicator |
