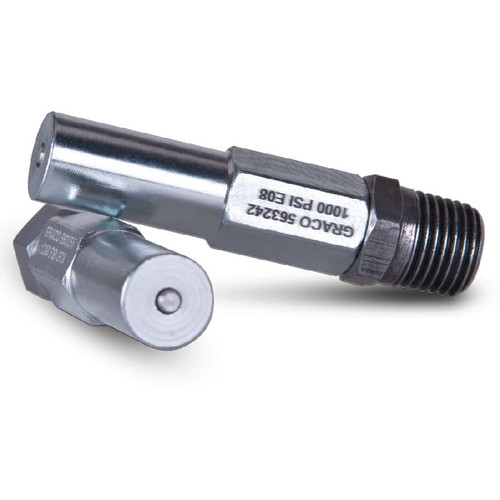

GRACO 563242 - Reset Indicator w/ Memory, 1000 PSI, 1/4 NPT(F) - MX Divider Valves Only

Reset Indicator with Memory for MX divider valve systems. This pressure-sensitive device stops lube system operation when a fault occurs, providing critical protection for progressive divider valve systems. When a lube line becomes blocked, high pressure moves internal pistons to compress the spring and push the indicator pin through the cap opening, providing clear visual indication of system fault.

Easy information on blocked lines, high system pressure or blocked bearings.

Additional Specifications

• Thread: 1/4 NPTF
• Valve Compatibility: MX only (not MXP)
• Mounting Location: Master or secondary divider valves
• Application: MX Only
• Type: Reset Indicator with Memory

Specifications

Features

• Stops lube system operation when fault occurs
• Memory function retains fault indication
• Visual indicator pin shows system status
• Pressure-sensitive operation
• Can be used in master or secondary divider valves
• Quick response to protect lube system

Applications

• Progressive divider valve system monitoring
• Trabon Centralized Lubrication Systems
• Lube line blockage detection
• System fault indication

Compatible Equipment

• MX divider valves
• Trabon Centralized Lubrication Systems

Related Parts

• 563231 - Ms Mh Reset Indicator w/ Memory, 250 PSI, 1/8 NPT(F) - Mj, Mxp Divider Valves
• 563232 - Reset Indicator w/ Memory, 500 PSI, 1/8 NPT(F) - MJ, MH, MS, MXP Divider Valves
• 563233 - Ms Mh Reset Indicator w/ Memory, 750 PSI, 1/8 NPT(F) - Mj, Mxp Divider Valves
• 563234 - Ms Mh Reset Indicator w/ Memory, 1000 PSI, 1/8 NPT(F) - Mj, Mxp Divider Valves
• 563235 - Ms Mh Reset Indicator w/ Memory, 1500 PSI, 1/8 NPT(F) - Mj, Mxp Divider Valves
• 563236 - Ms Mh Reset Indicator w/ Memory, 2000 PSI, 1/8 NPT(F) - Mj, Mxp Divider Valves
• 563237 - Ms Mh Reset Indicator w/ Memory, 2500 PSI, 1/8 NPT(F) - Mj, Mxp Divider Valves
• 563241 - Reset Indicator w/ Memory, 750 PSI, 1/4 NPT(F) - Mx Divider Valves Only
• 563243 - Reset Indicator w/ Memory, 1500 PSI, 1/4 NPT(F) - MX Divider Valves Only

Specifically designed for MX divider valves only (not compatible with MXP). Recommended for monitoring every working outlet of a Trabon Centralized Lubrication System. Reset Indicators stop lube system operation when a fault occurs. They can be used in either master or secondary divider valves. A fault is indicated by a pin extending through the opening in the cap and is manually reset.

Reference Manuals

• L15401EN - C (Page 1)
• 312497 (Page 38) Trabon Divider Valves .
