Item #: 653057
Price: $16,042.86
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

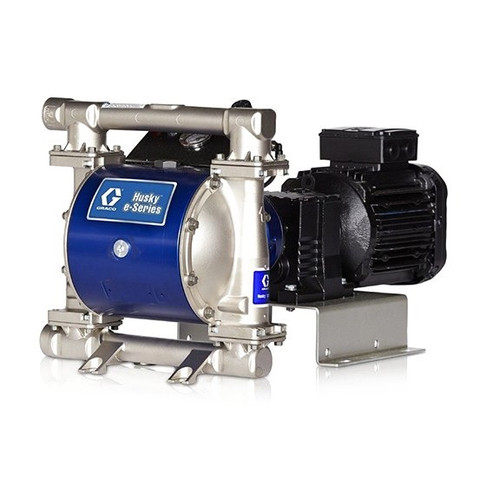

GRACO 653057 - Husky 1050e 1" NPT SS Pump, 120V Compressor, Standard AC Motor, SS Center Section, SS Seats, SS Balls & PO Diaphragm
Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.
| Air Inlet Size (in) | 3/8 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | 316 Stainless Steel |
| Center Section Material | Stainless Steel |
| Compatible Material | Antifreeze, Detergent, Gel-Coat, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Motor Oil, Grease & Oil, Used Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Oil, Water - Wastewater Treatment, Water - Wastewater Transfer, Water, Waterborne, Solventborne, High Solids, Plural Components, CARC, Metallics, Topcoats, Stains, Varnish, Lacquer, Ceramics, Enamel, Epoxies, Ink |
| Connection Type | Threaded |
| Diaphragm Compatible Material | PTFE |
| Diaphragm Material | PTFE/EPDM Overmold |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Material | Stainless Steel |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Material | Stainless Steel |
| Maximum Air Pressure (MPa) | 0.55 |
| Maximum Air Pressure (psi) | 80 |
| Maximum Amperage (A) | 5.7 |
| Maximum Cycle Rate (CPM) | 280 |
| Maximum Flow Rate (GPM) | 42 |
| Maximum Fluid Pressure (MPa) | 0.48 |
| Maximum Fluid Pressure (psi) | 70 |
| Maximum Motor Speed (RPM) | 1800 |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Storage Temperature (°F) | 104 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Storage Temperature (°F) | 32 |
| Model | Husky |
| Motor Type | AC |
| Power Rating (HP) | 2 |
| Power Source | Electric |
| Seat Material | Stainless Steel |
| Series | 1050e |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 230 |
| Weight (lb) | 153 |
GRACO 653057 - Husky 1050e 1" NPT SS Pump, 120V Compressor, Standard AC Motor, SS Center Section, SS Seats, SS Balls & PO Diaphragm
Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.
| Air Inlet Size (in) | 3/8 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | 316 Stainless Steel |
| Center Section Material | Stainless Steel |
| Compatible Material | Antifreeze, Detergent, Gel-Coat, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Motor Oil, Grease & Oil, Used Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Oil, Water - Wastewater Treatment, Water - Wastewater Transfer, Water, Waterborne, Solventborne, High Solids, Plural Components, CARC, Metallics, Topcoats, Stains, Varnish, Lacquer, Ceramics, Enamel, Epoxies, Ink |
| Connection Type | Threaded |
| Diaphragm Compatible Material | PTFE |
| Diaphragm Material | PTFE/EPDM Overmold |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Material | Stainless Steel |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Material | Stainless Steel |
| Maximum Air Pressure (MPa) | 0.55 |
| Maximum Air Pressure (psi) | 80 |
| Maximum Amperage (A) | 5.7 |
| Maximum Cycle Rate (CPM) | 280 |
| Maximum Flow Rate (GPM) | 42 |
| Maximum Fluid Pressure (MPa) | 0.48 |
| Maximum Fluid Pressure (psi) | 70 |
| Maximum Motor Speed (RPM) | 1800 |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Storage Temperature (°F) | 104 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Storage Temperature (°F) | 32 |
| Model | Husky |
| Motor Type | AC |
| Power Rating (HP) | 2 |
| Power Source | Electric |
| Seat Material | Stainless Steel |
| Series | 1050e |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 230 |
| Weight (lb) | 153 |
