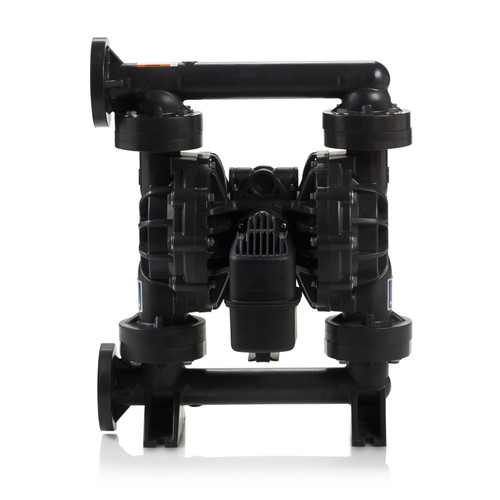

GRACO 654546 Husky 15120 PVDF Pump, PP Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm
The Husky 15120 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
- Overall improved efficiency (up to 40% more efficient)
- Highest fluid flow rate in its class
- Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
- Expanded material offering to handle endless applications
- 1-1/2 in (38.1 mm) ANSI center and end-porting options available
- High flow - 120 gpm (454 lpm) in a compact, portable size
- Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
- Lube-free operation
- Available in polypropylene and PVDF
Specifications
| Air Exhaust Port Size (in) | 1 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | PTFE |
| Center Section Material | Polypropylene |
| Compatible Material | Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer |
| Connection Type | Center Flange ANSI/DIN |
| Diaphragm Material | PTFE/EPDM 2-Piece |
| Fluid Inlet Size (in) | 1-1/2 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Outlet Thread Gender | Female |
| Fluid Section Material | PVDF |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Material | PVDF |
| Maximum Air Consumption (SCFM) | 85 |
| Maximum Air Pressure (MPa) | 0.86 |
| Maximum Air Pressure (psi) | 125 |
| Maximum Cycle Rate (CPM) | 183 |
| Maximum Flow Rate (GPM) | 120 |
| Maximum Fluid Pressure (MPa) | 0.86 |
| Maximum Fluid Pressure (psi) | 125 |
| Maximum Operating Temperature (°F) | 225 |
| Maximum Solid Size (in) | 0.25 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Storage Temperature (°F) | 32 |
| Power Source | Air |
| Seat Material | Polypropylene |
| Standards Met | CE |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 74 |
