Item #: 77X002
Price: $6,850.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

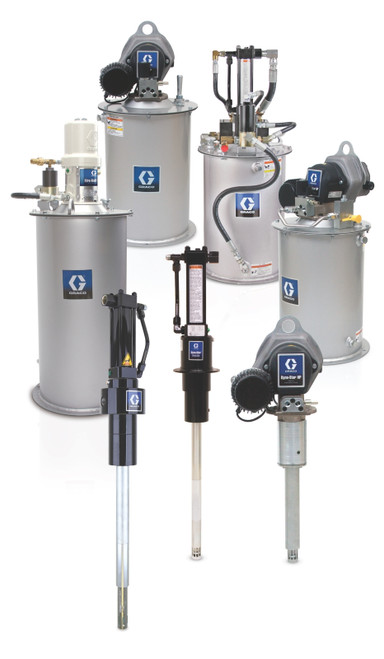

GRACO 77X002 Electric Dyna-Star® HP 24 VDC, Stand Alone Pump with Tube-in-Tube for 90 or 120 lb . Reservoir
Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.
Electric pumps for heavy duty automatic lubrication and transfer systems.
Specifications:
| Application | In-Plant Machinery, Off-Road Equipment |
| Compatible Material | Oil, Grease |
| Compatible Metering Device | Single Line Parallel |
| Fluid Outlet Size (in) | 0.375 |
| Fluid Outlet Thread Type | NPT |
| IP Rating | IP69K |
| Includes | HP Pump, Tube-in-Tube, 400 lb (180 kg) Reservoir |
| Maximum Voltage (V dc) | 32 |
| Maximum Working Pressure (MPa) | 34.4 |
| Maximum Working Pressure (psi) | 5000 |
| Minimum Voltage (V dc) | 18 |
| Overall Height (in) | 36.5 |
| Overall Width (in) | 11 |
| Power Connection Type | M23 |
| Power Type | Electric |
| Reservoir Size (lb) | 90, 120 |
| Type | Electric Piston Pump |
| Voltage (V dc) | 24 |
| Weight (lb) | 55 |
| Wetted Material | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
GRACO 77X002 Electric Dyna-Star® HP 24 VDC, Stand Alone Pump with Tube-in-Tube for 90 or 120 lb . Reservoir
Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.
Electric pumps for heavy duty automatic lubrication and transfer systems.
Specifications:
| Application | In-Plant Machinery, Off-Road Equipment |
| Compatible Material | Oil, Grease |
| Compatible Metering Device | Single Line Parallel |
| Fluid Outlet Size (in) | 0.375 |
| Fluid Outlet Thread Type | NPT |
| IP Rating | IP69K |
| Includes | HP Pump, Tube-in-Tube, 400 lb (180 kg) Reservoir |
| Maximum Voltage (V dc) | 32 |
| Maximum Working Pressure (MPa) | 34.4 |
| Maximum Working Pressure (psi) | 5000 |
| Minimum Voltage (V dc) | 18 |
| Overall Height (in) | 36.5 |
| Overall Width (in) | 11 |
| Power Connection Type | M23 |
| Power Type | Electric |
| Reservoir Size (lb) | 90, 120 |
| Type | Electric Piston Pump |
| Voltage (V dc) | 24 |
| Weight (lb) | 55 |
| Wetted Material | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
