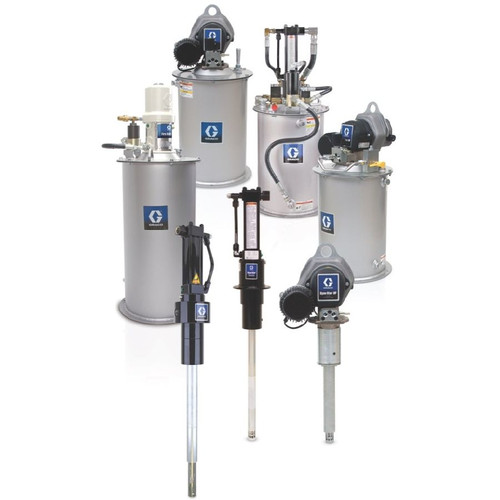

GRACO 77X012 Electric Dyna-Star® Custom Tank Injector Kit - 24 VDC HP pump, Vent Valve with Tube-in-Tube for 90 or 120 lb reservoir
Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.
Electric pumps for heavy duty automatic lubrication and transfer systems.
Specifications:
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPT |
| Application | In-Plant Machinery, Off-Road Equipment |
| Compatible Material | Oil, Grease |
| Compatible Metering Device | Single Line Parallel |
| Fluid Outlet Size (in) | 0.375 |
| Fluid Outlet Thread Type | NPT |
| IP Rating | IP69K |
| Includes | HP Pump, Vent Valve, 90/120 lb Reservoir |
| Maximum Working Pressure (MPa) | 34.5 |
| Maximum Working Pressure (psi) | 5000 |
| Minimum cST Grade (cST) | 40 |
| Overall Height (in) | 36.5 |
| Overall Width (in) | 11 |
| Power Connection Type | M23 |
| Power Type | Pneumatic |
| Reservoir Size (lb) | 90, 120 |
| Type | Electric Piston Pump |
| Voltage (V dc) | 24 |
| Weight (lb) | 55 |
