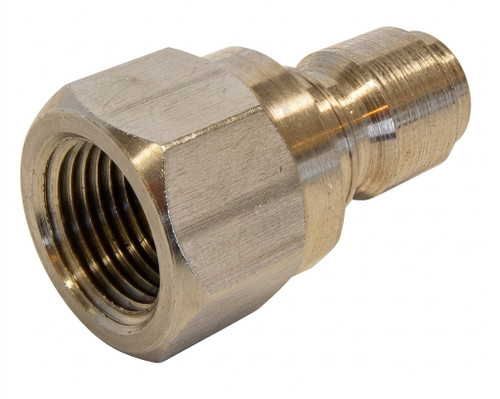

GRACO 801568 - Coupling, Quick Release, 3/8", 3/8" NPT(F)

Quick disconnect coupler designed for high-pressure fluid handling applications, featuring 3/8" male NPT threading for secure connections in pressure washing and fluid transfer systems

Specifications

• Outside Diameter: 3/8"
• Inside Diameter: 3/8"
• Thread: 3/8" NPT(F)

Features

• Quick disconnect design for fast coupling/uncoupling
• Female NPT threading for versatile connections
• Part of G-FORCE system accessories

Applications

• Pressure washing systems
• Fluid transfer applications
• Industrial cleaning equipment
• High-pressure spray systems

Compatible Equipment

• G-FORCE II pressure washers
• G-FORCE spray guns and equipment
• Suction Kit 221146 - Kit Differential Suctn, Suction Kit 224762, Suction assemblies 222025
• Suction assemblies 222024

Related Parts

• 801569 - 3/8" NPT(F) Quick Release Pressure Washer Coupler
• 16X679 - Ball Valve Shutoff, 4000 PSI
• 19B375
• 127529 - Chemical Injector Complete Kit w/ Qds, 290 Bar
• 16X680 - Gutter Cleaning Attachment, 4000 PSI
• 287643 - Adapter, Garden Hose
• 186085 - WAND, 48 inch
• 186084 - WAND, 48 inch
• 186087 - WAND, 48 inch

Listed as 'QD coupler, 3/8" (M) x 3/8" NPT(F)' in the Couplers & Attachments section This quick coupler is used as a standard component across multiple suction kit configurations and suction assemblies. It appears in both the 10-ft suction kit (221146) and 48-inch suction wand kit (224762). Always used with wands and elbows in suction assemblies. This part is included in Mounting Kit 223697, reference number 9 in the assembly diagram. The (F) designation likely indicates female coupling.

Reference Manuals

• 320582 (Page 4) G-FORCE II
• 307870 (Page 6) Evacuation System Accessories
• 308035 (Page 7) Portable Evacuation System
• 308154 (Page 12) Fas-Vac Evacuation System
