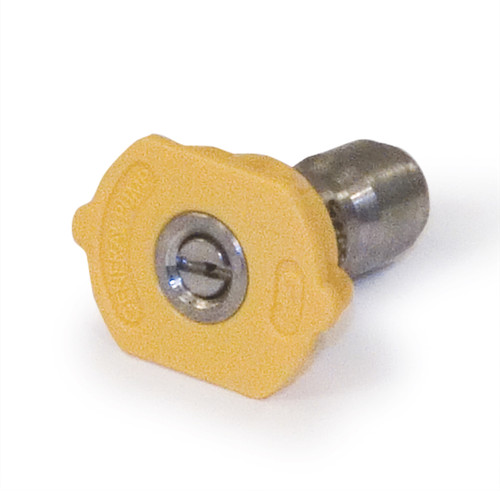

GRACO 805539 - Washer Spray Tip, 00035, 4000 PSI

GRACO rotating spray tip designed for maximum cleaning power with 15-degree spray pattern. Features rotating and oscillating design that increases cleaning power while decreasing cleaning time, delivering high-impact spray performance for tough cleaning applications.

Maximize your cleaning power by selecting the tip that best matches the maximum pressure and flow of your pressure washer. For lower pressure spraying, choose a larger size tip to maximize your flow and cleaning power.

Additional Specifications

• Max Working Pressure: 2500-4000 PSI
• Orifice Size: 3.5
• Spray Angle: 15 degrees
• Tip Color: Yellow

Specifications

Features

• Reversible tip design for extended life
• Precise 0.035 inch orifice for controlled material flow
• 15 degree spray angle for targeted application
• Compatible with GRACO airless spray systems
• Rotating and oscillating design increases cleaning power
• Decreases cleaning time compared to standard tips

Applications

• Airless paint spraying
• Coating applications
• Professional painting projects
• Surface finishing
• Chiseling applications
• Paint removal and surface preparation

Compatible Equipment

• G-FORCE II pressure washers when used with appropriate gun attachments
• G-Force II Pressure Washers
• G-Force II 2525 DD
• G-Force II 2532 DD
• G-Force II 3027 DD
• G-Force II 3032 DD

Related Parts

• 805535 - Washer Spray Tip, 0003
• 805536 - Washer Spray Tip, 1503, 3.0 Orifice, Up to 5000 PSI
• 805537 - Washer Spray Tip, 2503
• 805538 - Washer Spray Tip, 4003
• 805540 - Washer Spray Tip, 15035
• 805541 - Washer Spray Tip, 25035

Part of GRACO's comprehensive tip lineup with various orifice sizes and spray angles available. Appears in tip selection chart for professional spray applications. Part of the rotating tip family for G-Force II pressure washers. Yellow color coding indicates 15-degree spray angle for chiseling applications. Part of the tip color-coding system for G-Force II pressure washers. The 0° red tip provides the most concentrated spray pattern for maximum cleaning power.

Reference Manuals

• 320582 (Page 4)
• 338781 (Page 8)
• 344379 (Page 8)
• 308514 (Page 2)
• 333031 (Page 24)
