Item #: 96G003
Price: $1,340.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

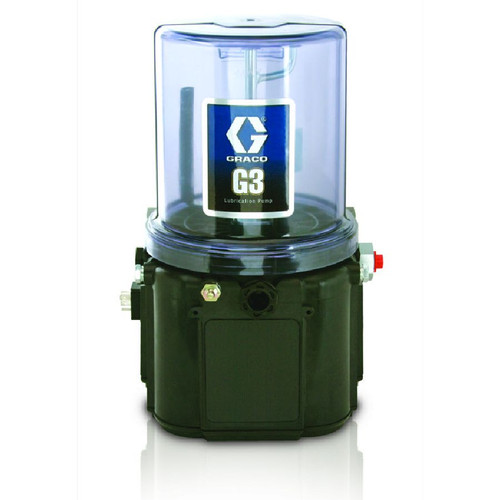

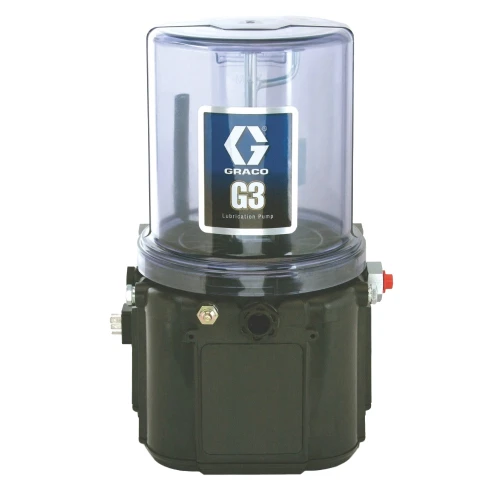

GRACO 96G003 G3™ Standard Grease Lubrication Pump, 12 VDC, 2 Liter, External Low Level, CPC
Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.
Specifications:
| Application | On-Road Vehicles, Off-Road Equipment |
| Compatible Material | Grease |
| Compatible Metering Device | Series Progressive, Single Line Parallel |
| Control Options | Standard |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| For Use With | Injector-Based Systems, Series Progressive Systems |
| IP Rating | IP69K |
| Includes | Wiper Arm, External Low Level |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum NLGI Grade | #2 |
| Maximum Run Time (min) | 30 |
| Maximum Voltage (V dc) | 16 |
| Maximum Working Pressure (MPa) | 35.1 |
| Maximum Working Pressure (psi) | 5100 |
| Minimum Voltage (V dc) | 9 |
| Number of Pump Elements | Up to 3 |
| Overall Depth (in) | 9 |
| Overall Height (in) | 13.25 |
| Overall Width (in) | 8 |
| Power Connection Type | CPC |
| Power Type | Electric |
| Reservoir Size (gal) | 0.528 |
| Standards Met | CE, ETL |
| Type | Electric Piston Pump |
| Voltage (V dc) | 12 |
| Voltage (V) | 12 VDC |
| Weight (lb) | 13.3 |
| Wetted Material | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
GRACO 96G003 G3™ Standard Grease Lubrication Pump, 12 VDC, 2 Liter, External Low Level, CPC
Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.
Specifications:
| Application | On-Road Vehicles, Off-Road Equipment |
| Compatible Material | Grease |
| Compatible Metering Device | Series Progressive, Single Line Parallel |
| Control Options | Standard |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| For Use With | Injector-Based Systems, Series Progressive Systems |
| IP Rating | IP69K |
| Includes | Wiper Arm, External Low Level |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum NLGI Grade | #2 |
| Maximum Run Time (min) | 30 |
| Maximum Voltage (V dc) | 16 |
| Maximum Working Pressure (MPa) | 35.1 |
| Maximum Working Pressure (psi) | 5100 |
| Minimum Voltage (V dc) | 9 |
| Number of Pump Elements | Up to 3 |
| Overall Depth (in) | 9 |
| Overall Height (in) | 13.25 |
| Overall Width (in) | 8 |
| Power Connection Type | CPC |
| Power Type | Electric |
| Reservoir Size (gal) | 0.528 |
| Standards Met | CE, ETL |
| Type | Electric Piston Pump |
| Voltage (V dc) | 12 |
| Voltage (V) | 12 VDC |
| Weight (lb) | 13.3 |
| Wetted Material | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
