Item #: 96G034
Price: $1,515.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

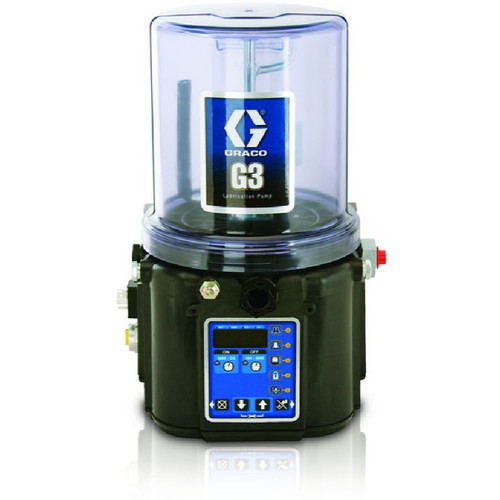

GRACO 96G034 G3™ Pro Grease Lubrication Pump, 24 VDC, 2 Liter, Low Level with Controller, 5 Pin CPC
Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Pro has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.
Specifications:
| Alarm Relay Inductive Maximum Operating Voltage (VDC) | 220 |
| Alarm Relay Inductive Maximum Switching Capacity | 25 VA;30 W |
| Alarm Relay Inductive Minimum Permissible Load | 10 ?A;10m VDC |
| Alarm Relay Inductive Rated Load (A) | 1 |
| Alarm Relay Resistive Maximum Operating Current (A) | 3 |
| Alarm Relay Resistive Maximum Operating Voltage (VDC) | 220 |
| Alarm Relay Resistive Maximum Switching Capacity | 50 VA;60 W |
| Alarm Relay Resistive Minimum Permissible Load | 10 µA;10m VDC |
| Alarm Relay Resistive Rated Load (A) | 2 |
| Application | On-Road Vehicles, Off-Road Equipment |
| Compatible Material | Grease |
| Compatible Metering Device | Series Progressive |
| Control Options | Pro |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| For Use With | Injector-Based Systems, Series Progressive Systems |
| IP Rating | IP69K |
| Includes | Wiper Arm, Low Level |
| Input Cycle Rate (Hz) | 8 |
| Input Impedance | 1.1 |
| Input Load Current (mA @ 24 VDC) | 22 |
| Input Maximum Off Current (mA) | 1.5 |
| Input Maximum Residual Voltage (V) | 4 |
| Input Required Switch Type | Normally Open |
| Input Response Time (ms) | 60 |
| Input Sensor Voltage (VDC) | 24 |
| Low Level Carry Current (A) | 1.2 |
| Low Level Contact Rating (W) | 10 |
| Low Level Switch Rating (VDC) | 200 |
| Low Level Switching Current (A) | 0.5 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum NLGI Grade | #2 |
| Maximum Run Time (min) | 30 |
| Maximum Voltage (V dc) | 32 |
| Maximum Working Pressure (MPa) | 35.1 |
| Maximum Working Pressure (psi) | 5100 |
| Minimum Voltage (V dc) | 18 |
| Number of Machine Count Sensor Inputs | 1 |
| Number of Pressure and Cycle Sensor Inputs | 3 |
| Number of Pump Elements | Up to 3 |
| Overall Depth (in) | 9 |
| Overall Height (in) | 13.25 |
| Overall Width (in) | 8 |
| Power Connection Type | 5 Wire CPC |
| Power Type | Electric |
| Pump Output with 0 Spacers (cu in/min) | 0.25 |
| Pump Output with 1 Spacer (cu in/min) | 0.18 |
| Pump Output with 2 Spacers (cu in/min) | 0.12 |
| Reservoir Size (gal) | 0.528 |
| Standards Met | CE, ETL |
| Type | Electric Piston Pump |
| Vent Valve Maximum Operating Current (A) | 2 |
| Vent Valve Maximum Operating Power (W) | 48 |
| Vent Valve Output Voltage (VDC) | 24 |
| Voltage (V dc) | 24 |
| Voltage (V) | 24 VDC |
| Weight (lb) | 13.3 |
| Wetted Material | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
