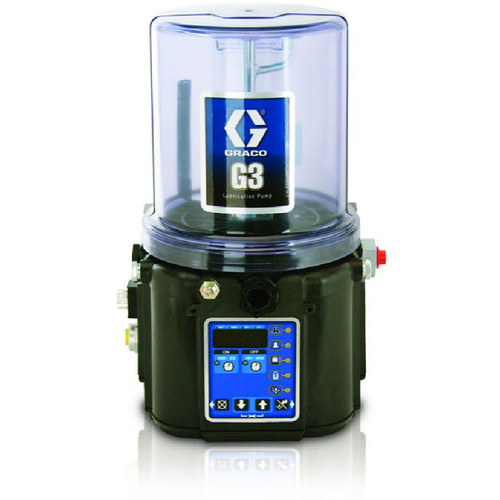

GRACO 96G192 G3™ Standard Grease Lubrication Pump, 24 VDC, 8 Liter, Follower Plate, External Low Level, CPC
Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.
Specifications:
| Application | On-Road Vehicles, Off-Road Equipment |
| Compatible Material | Grease |
| Compatible Metering Device | Series Progressive, Single Line Parallel |
| Control Options | Standard |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| For Use With | Injector-Based Systems, Series Progressive Systems |
| IP Rating | IP69K |
| Includes | Follower Plate, External Low Level |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum NLGI Grade | #2 |
| Maximum Run Time (min) | 30 |
| Maximum Voltage (V dc) | 32 |
| Maximum Working Pressure (MPa) | 35.1 |
| Maximum Working Pressure (psi) | 5100 |
| Minimum Voltage (V dc) | 18 |
| Number of Pump Elements | Up to 3 |
| Overall Depth (in) | 10 |
| Overall Height (in) | 18.5 |
| Overall Width (in) | 9.25 |
| Power Connection Type | CPC |
| Power Type | Electric |
| Reservoir Size (gal) | 2.11 |
| Standards Met | CE, ETL |
| Type | Electric Piston Pump |
| Voltage (V dc) | 24 |
| Voltage (V) | 24 VDC |
| Weight (lb) | 13.3 |
| Wetted Material | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
