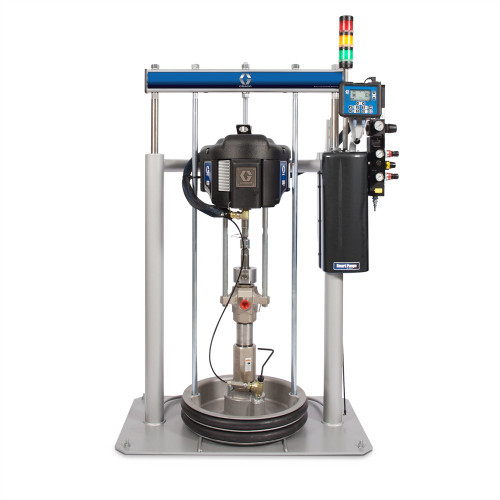

GRACO CM9A59 61:1 Ratio 200 L D200 Supply Unit
Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.
Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.
Specifications:
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Container Type | Drum |
| Control Panel Material | N/A |
| Material Container Volume (gal) | 52.8 |
| Maximum Air Inlet Pressure (psi) | 150 |
| Maximum Flow Rate (GPM) | 0.9 |
| Maximum Fluid Pressure (psi) | 6100 |
| Maximum Height (ft) | 8.53 |
| Maximum Height (in) | 102.3 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (MPa) | 42.1 |
| Maximum Working Pressure (psi) | 6100 |
| Minimum Height (ft) | 5.4 |
| Minimum Height (in) | 64.8 |
| Overall Depth (in) | 25 |
| Overall Width (in) | 42 |
| Power Type | Pneumatic |
| Pump Ratio | 61:1 |
| Pump Type | Priming Piston |
| Ram Material | Carbon Steel |
| Standards Met | CE, ETL |
| Type | Supply Unit |
| Wetted Material | Alloy Steel, Stainless Steel, Acetal, Carbon-Filled PTFE, Carbon Steel, Ductile Iron, Electroless Nickel Plating, Zinc Plating, Chrome Plating, High Molecular Weight Polyethylene, PTFE, Neoprene, Aluminum, Zinc-Plated Carbon Steel |
