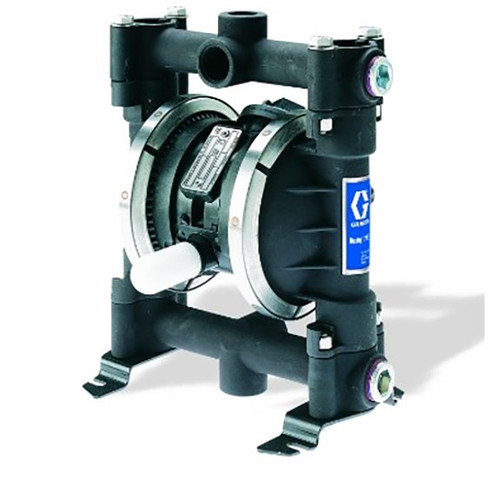

GRACO D53255 - Husky 716 AL Air Operated Double Diaphragm Metal Pump w/ NPT Standard Air Valve, AC Seat, TPE Ball, & TPE Diaphragm, 100 PSI
Husky 716 Air Operated Double Diaphragm Pump in aluminum construction with NPT ported configuration. Features Acetal seals, Hytrel balls and Hytrel diaphragm for reliable fluid handling. Delivers up to 16 gpm flow rate with 3/4" NPT fluid connections.
The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
Additional Specifications
Specifications
| Air Exhaust Port Size (in) | 3/8 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | TPE (Hytrel) |
| Center Section Material | Polypropylene |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink |
| Compressor Required | Yes |
| Connection Type | Threaded |
| Diaphragm Compatible Material | TPE |
| Diaphragm Material | TPE (Hytrel) |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Material | Aluminum |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | PTFE |
| Material | Aluminum |
| Maximum Air Consumption (SCFM) | 28 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 400 |
| Maximum Flow Rate (GPM) | 16 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Operating Temperature (°F) | 225 |
| Maximum Solid Size (in) | 0.09375 |
| Minimum Operating Temperature (°F) | 40 |
| Model | Husky |
| Overall Height (in) | 10.43 |
| Power Source | Air |
| Seat Material | Acetal |
| Series | 716 |
| Standards Met | ATEX, CE |
| Type | Pneumatic Diaphragm Pump |
Features
Applications
Compatible Equipment
Related Parts
Part of Husky 716 aluminum pump family. BSP equivalent is D5C255. Available in both aluminum and stainless steel construction options.
Reference Manuals
GRACO D53255 - Husky 716 AL Air Operated Double Diaphragm Metal Pump w/ NPT Standard Air Valve, AC Seat, TPE Ball, & TPE Diaphragm, 100 PSI
Husky 716 Air Operated Double Diaphragm Pump in aluminum construction with NPT ported configuration. Features Acetal seals, Hytrel balls and Hytrel diaphragm for reliable fluid handling. Delivers up to 16 gpm flow rate with 3/4" NPT fluid connections.
The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
Additional Specifications
Specifications
| Air Exhaust Port Size (in) | 3/8 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | TPE (Hytrel) |
| Center Section Material | Polypropylene |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink |
| Compressor Required | Yes |
| Connection Type | Threaded |
| Diaphragm Compatible Material | TPE |
| Diaphragm Material | TPE (Hytrel) |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Material | Aluminum |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | PTFE |
| Material | Aluminum |
| Maximum Air Consumption (SCFM) | 28 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 400 |
| Maximum Flow Rate (GPM) | 16 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Operating Temperature (°F) | 225 |
| Maximum Solid Size (in) | 0.09375 |
| Minimum Operating Temperature (°F) | 40 |
| Model | Husky |
| Overall Height (in) | 10.43 |
| Power Source | Air |
| Seat Material | Acetal |
| Series | 716 |
| Standards Met | ATEX, CE |
| Type | Pneumatic Diaphragm Pump |
Features
Applications
Compatible Equipment
Related Parts
Part of Husky 716 aluminum pump family. BSP equivalent is D5C255. Available in both aluminum and stainless steel construction options.
Reference Manuals
