Item #: D53311
Price: $1,670.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

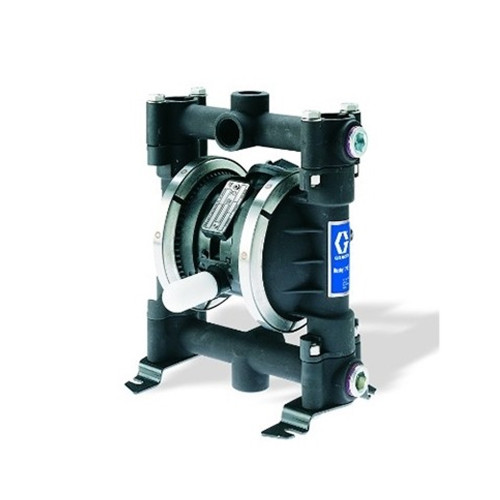

GRACO D53311 - Husky 716 AL Air Operated Double Diaphragm Metal Pump w/ NPT Standard Air Valve, SS Seat, PTFE Ball, & PTFE Diaphragm, 100 PSI
Husky 716 Air Operated Double Diaphragm Pump with aluminum construction, SST seats, PTFE balls and diaphragms. Designed for reliable fluid transfer applications with excellent chemical compatibility and durability.
The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
Additional Specifications
Specifications
| Air Exhaust Port Size (in) | 3/8 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | PTFE |
| Center Section Material | Polypropylene |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink |
| Compressor Required | Yes |
| Connection Type | Threaded |
| Diaphragm Compatible Material | PTFE |
| Diaphragm Material | PTFE/EPDM 2-Piece |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Material | Aluminum |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | PTFE |
| Material | Aluminum |
| Maximum Air Consumption (SCFM) | 28 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 400 |
| Maximum Flow Rate (GPM) | 16 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Operating Temperature (°F) | 225 |
| Maximum Solid Size (in) | 0.09375 |
| Minimum Operating Temperature (°F) | 40 |
| Model | Husky |
| Overall Height (in) | 10.43 |
| Power Source | Air |
| Seat Material | Stainless Steel |
| Series | 716 |
| Standards Met | ATEX, CE |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 8.5 |
Features
Applications
Compatible Equipment
Related Parts
Part of the Husky 716 aluminum pump family. Consult Process Equipment Buyer's Guide (300435) for additional configurations.
Reference Manuals
