Item #: DB2377
Price: $4,480.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

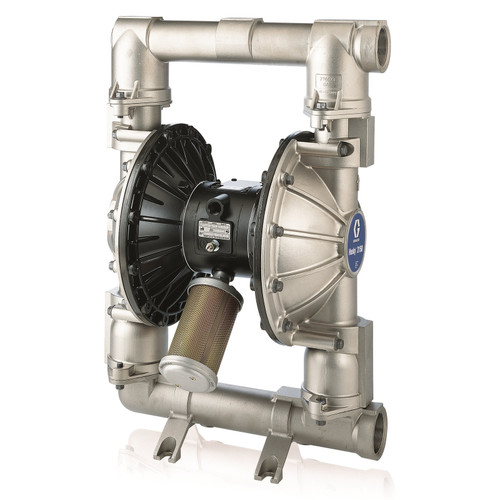

GRACO DB2377 - Husky 1590 PP Air Operated Double Diaphragm Plastic Pump, SS/BN/PT
The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | Buna-N |
| Center Section Material | Aluminum |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer |
| Diaphragm Compatible Material | Buna |
| Diaphragm Material | Buna-N |
| Fluid Inlet Size (in) | 1-1/2 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Outlet Thread Gender | Female |
| Fluid Section Material | Polypropylene |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Material | Polypropylene |
| Maximum Air Consumption (SCFM) | 125 |
| Maximum Air Pressure (MPa) | 0.827 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 200 |
| Maximum Flow Rate (GPM) | 100 |
| Maximum Fluid Pressure (MPa) | 0.827 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Solid Size (in) | 0.1875 |
| Model | Husky |
| Power Source | Air |
| Seat Material | Stainless Steel |
| Series | 1590 |
| Standards Met | CE |
| Type | Pneumatic Diaphragm Pump |
GRACO DB2377 - Husky 1590 PP Air Operated Double Diaphragm Plastic Pump, SS/BN/PT
The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | Buna-N |
| Center Section Material | Aluminum |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer |
| Diaphragm Compatible Material | Buna |
| Diaphragm Material | Buna-N |
| Fluid Inlet Size (in) | 1-1/2 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Outlet Thread Gender | Female |
| Fluid Section Material | Polypropylene |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Material | Polypropylene |
| Maximum Air Consumption (SCFM) | 125 |
| Maximum Air Pressure (MPa) | 0.827 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 200 |
| Maximum Flow Rate (GPM) | 100 |
| Maximum Fluid Pressure (MPa) | 0.827 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Solid Size (in) | 0.1875 |
| Model | Husky |
| Power Source | Air |
| Seat Material | Stainless Steel |
| Series | 1590 |
| Standards Met | CE |
| Type | Pneumatic Diaphragm Pump |
