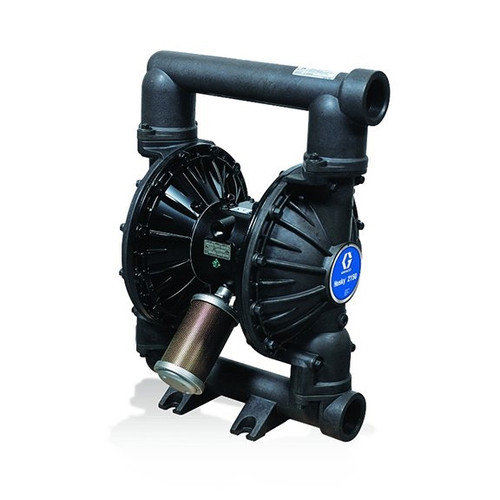

GRACO DFC525 - Husky 2150 AL Air Operated Double Diaphragm Metal Pump, TPE/AC
The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
Air Inlet Size (in) | 1/2 |
Air Inlet Thread Gender | Female |
Air Inlet Thread Type | NPT |
Application | Industrial |
Ball Material | Acetal |
Center Section Material | Aluminum |
Compatible Material | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer |
Connection Type | Threaded |
Diaphragm Compatible Material | TPE |
Diaphragm Material | TPE (Hytrel) |
Fluid Inlet Size (in) | 2 |
Fluid Inlet Thread Type | BSPT |
Fluid Outlet Size (in) | 2 |
Fluid Outlet Thread Type | BSPT |
Fluid Section Material | Aluminum |
Manifold Configuration | End Port |
Material | Aluminum |
Maximum Air Consumption (SCFM) | 175 |
Maximum Air Pressure (MPa) | 0.827 |
Maximum Air Pressure (psi) | 120 |
Maximum Cycle Rate (CPM) | 145 |
Maximum Flow Rate (GPM) | 150 |
Maximum Fluid Pressure (MPa) | 0.827 |
Maximum Fluid Pressure (psi) | 120 |
Maximum Operating Temperature (°F) | 150 |
Maximum Solid Size (in) | 0.25 |
Model | Husky |
Power Source | Air |
Seat Material | TPE (Hytrel) |
Series | 2150 |
Standards Met | ATEX, CE |
Type | Pneumatic Diaphragm Pump |
