Item #: DFC555
Price: $2,600.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

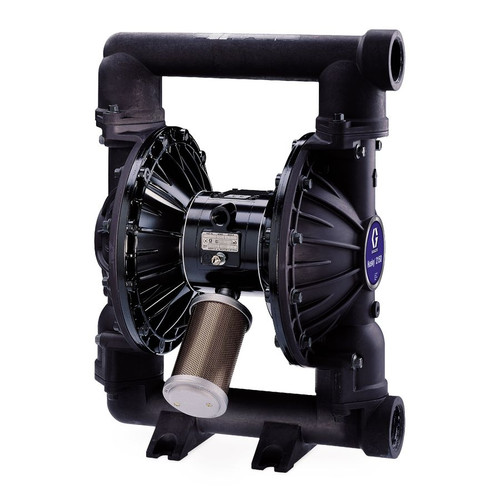

GRACO DFC555 - Husky 2150 AL Air Operated Double Diaphragm Metal Pump, TPE
The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | TPE (Hytrel) |
| Center Section Material | Aluminum |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer |
| Connection Type | Threaded |
| Diaphragm Compatible Material | TPE |
| Diaphragm Material | TPE (Hytrel) |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Thread Type | BSPT |
| Fluid Outlet Size (in) | 2 |
| Fluid Outlet Thread Type | BSPT |
| Fluid Section Material | Aluminum |
| Manifold Configuration | End Port |
| Material | Aluminum |
| Maximum Air Consumption (SCFM) | 175 |
| Maximum Air Pressure (MPa) | 0.827 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 145 |
| Maximum Flow Rate (GPM) | 150 |
| Maximum Fluid Pressure (MPa) | 0.827 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Solid Size (in) | 0.25 |
| Model | Husky |
| Power Source | Air |
| Seat Material | TPE (Hytrel) |
| Series | 2150 |
| Standards Met | ATEX, CE |
| Type | Pneumatic Diaphragm Pump |
GRACO DFC555 - Husky 2150 AL Air Operated Double Diaphragm Metal Pump, TPE
The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | TPE (Hytrel) |
| Center Section Material | Aluminum |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer |
| Connection Type | Threaded |
| Diaphragm Compatible Material | TPE |
| Diaphragm Material | TPE (Hytrel) |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Thread Type | BSPT |
| Fluid Outlet Size (in) | 2 |
| Fluid Outlet Thread Type | BSPT |
| Fluid Section Material | Aluminum |
| Manifold Configuration | End Port |
| Material | Aluminum |
| Maximum Air Consumption (SCFM) | 175 |
| Maximum Air Pressure (MPa) | 0.827 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 145 |
| Maximum Flow Rate (GPM) | 150 |
| Maximum Fluid Pressure (MPa) | 0.827 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Solid Size (in) | 0.25 |
| Model | Husky |
| Power Source | Air |
| Seat Material | TPE (Hytrel) |
| Series | 2150 |
| Standards Met | ATEX, CE |
| Type | Pneumatic Diaphragm Pump |
Items which meet certain size and packaging constraints qualify for free ground shipping on orders over $299.
Promotion does not apply to freight/truck-line or oversized items.
