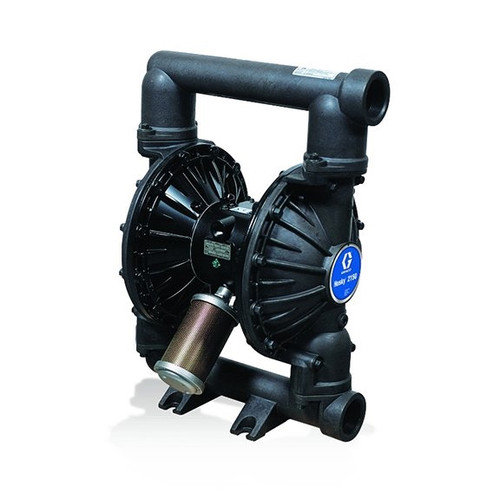

GRACO DFC366 - Husky 2150 AL Air Operated Double Diaphragm Metal Pump
Price: with strikethrough $3,080.00
Retail Price:
Sale Price: Price $2,717.14
Item #: DFC777
Price: $2,451.43
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.
Price: with strikethrough $3,080.00
Retail Price:
Sale Price: Price $2,717.14
GRACO DFC777 - Husky 2150 AL Air Operated Double Diaphragm Metal Pump, BN
Genuine GRACO replacement husky 2150 al air operated double diaphragm metal pump, bn.
The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
Specifications
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | Buna-N |
| Center Section Material | Aluminum |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer |
| Connection Type | Threaded |
| Diaphragm Compatible Material | Buna |
| Diaphragm Material | Buna-N |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Thread Type | BSPT |
| Fluid Outlet Size (in) | 2 |
| Fluid Outlet Thread Type | BSPT |
| Fluid Section Material | Aluminum |
| Manifold Configuration | End Port |
| Material | Aluminum |
| Maximum Air Consumption (SCFM) | 175 |
| Maximum Air Pressure (MPa) | 0.827 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 145 |
| Maximum Flow Rate (GPM) | 150 |
| Maximum Fluid Pressure (MPa) | 0.827 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Solid Size (in) | 0.25 |
| Model | Husky |
| Power Source | Air |
| Seat Material | Buna-N |
| Series | 2150 |
| Standards Met | ATEX, CE |
| Type | Pneumatic Diaphragm Pump |
GRACO DFC777 - Husky 2150 AL Air Operated Double Diaphragm Metal Pump, BN
Genuine GRACO replacement husky 2150 al air operated double diaphragm metal pump, bn.
The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
Specifications
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | Buna-N |
| Center Section Material | Aluminum |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer |
| Connection Type | Threaded |
| Diaphragm Compatible Material | Buna |
| Diaphragm Material | Buna-N |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Thread Type | BSPT |
| Fluid Outlet Size (in) | 2 |
| Fluid Outlet Thread Type | BSPT |
| Fluid Section Material | Aluminum |
| Manifold Configuration | End Port |
| Material | Aluminum |
| Maximum Air Consumption (SCFM) | 175 |
| Maximum Air Pressure (MPa) | 0.827 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 145 |
| Maximum Flow Rate (GPM) | 150 |
| Maximum Fluid Pressure (MPa) | 0.827 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Solid Size (in) | 0.25 |
| Model | Husky |
| Power Source | Air |
| Seat Material | Buna-N |
| Series | 2150 |
| Standards Met | ATEX, CE |
| Type | Pneumatic Diaphragm Pump |
