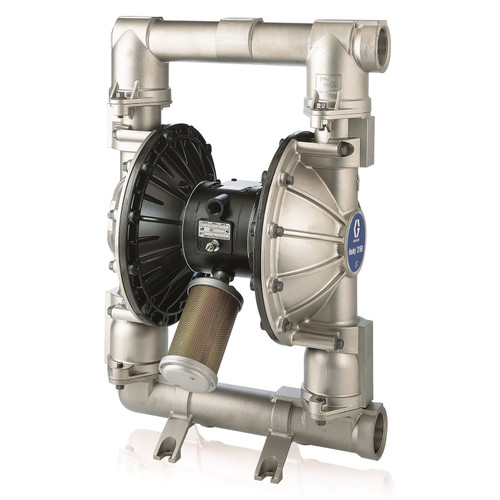

GRACO DT4311 - Husky 1590 SS Air Operated Double Diaphragm Metal Pump, SS/PT
The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
Air Inlet Size (in) | 1/2 |
Air Inlet Thread Gender | Female |
Air Inlet Thread Type | NPT |
Application | Industrial |
Ball Material | PTFE |
Center Section Material | Stainless Steel |
Compatible Material | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer |
Connection Type | Threaded |
Diaphragm Compatible Material | PTFE |
Diaphragm Material | PTFE/EPDM 2-Piece |
Fluid Inlet Size (in) | 1-1/2 |
Fluid Inlet Thread Gender | Female |
Fluid Inlet Thread Type | NPT |
Fluid Outlet Size (in) | 1-1/2 |
Fluid Outlet Thread Gender | Female |
Fluid Outlet Thread Type | NPT |
Fluid Section Material | Stainless Steel |
Manifold Configuration | End Port |
Manifold O-Ring Material | PTFE |
Material | Stainless Steel |
Maximum Air Consumption (SCFM) | 125 |
Maximum Air Pressure (MPa) | 0.827 |
Maximum Air Pressure (psi) | 120 |
Maximum Cycle Rate (CPM) | 200 |
Maximum Flow Rate (GPM) | 100 |
Maximum Fluid Pressure (MPa) | 0.827 |
Maximum Fluid Pressure (psi) | 120 |
Maximum Operating Temperature (°F) | 150 |
Maximum Solid Size (in) | 0.1875 |
Model | Husky |
Power Source | Air |
Seat Material | Stainless Steel |
Series | 1590 |
Standards Met | ATEX, CE |
Type | Pneumatic Diaphragm Pump |
